Product Type:Discrete Solid State I/O Module

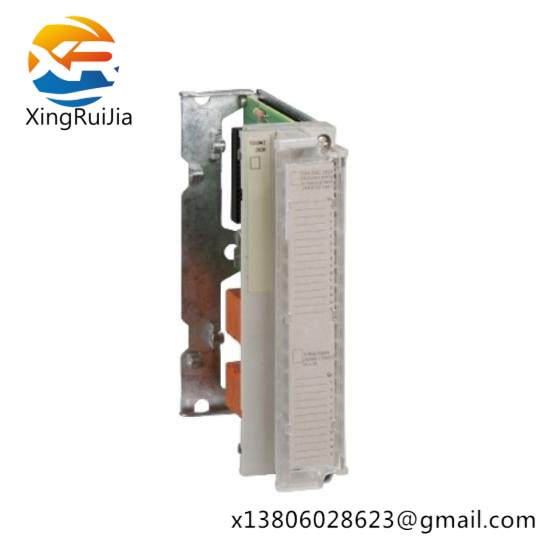

Model ID:TSXDMZ28DTK

Schneider Type Designation:Modicon TSX Micro automation platform

Product Category:Discrete I/O

Input Voltage:24 V DC

Positive Output Voltage:24 V DC

Current Consumption:132 mA

Power Dissipation:3.5 W

Weight:0.33 kg

Module Capacity:28 Channels

Operating Temperature:-25°C to +60°C

Environmental Compatibility:IP20

Connector Type:HE-10

Color:Standard

Technical Compatibility:Logic controllers, Motion controllers, PacDrive LMC Pro

    This modular input/output base is specifically engineered for discrete signals in industrial control systems, ensuring precise and reliable operation under various environmental conditions. The solid state outputs guarantee long-lasting performance without the risk of wear and tear associated with mechanical relays.

    Equipped with an advanced RS-485 communication interface, this device facilitates seamless integration into existing industrial networks, supporting data exchange and control protocols essential for modern automation systems.

    The Schneider Electric TSXDMZ28DTK is designed for easy installation and maintenance, featuring a compact panel-mountable form factor that optimizes space utilization on control panels. Its robust construction ensures durability in harsh industrial environments.

    Key design features include a wide operating temperature range, enabling deployment in a variety of industrial settings, from cold storage facilities to hot manufacturing floors. The unit’s lightweight design makes it portable and easy to transport during setup or relocation.

    Ideal for applications requiring high-speed signal processing, such as machine control, process monitoring, and safety systems, this I/O base delivers exceptional performance and reliability, contributing to the overall efficiency and productivity of industrial operations.
