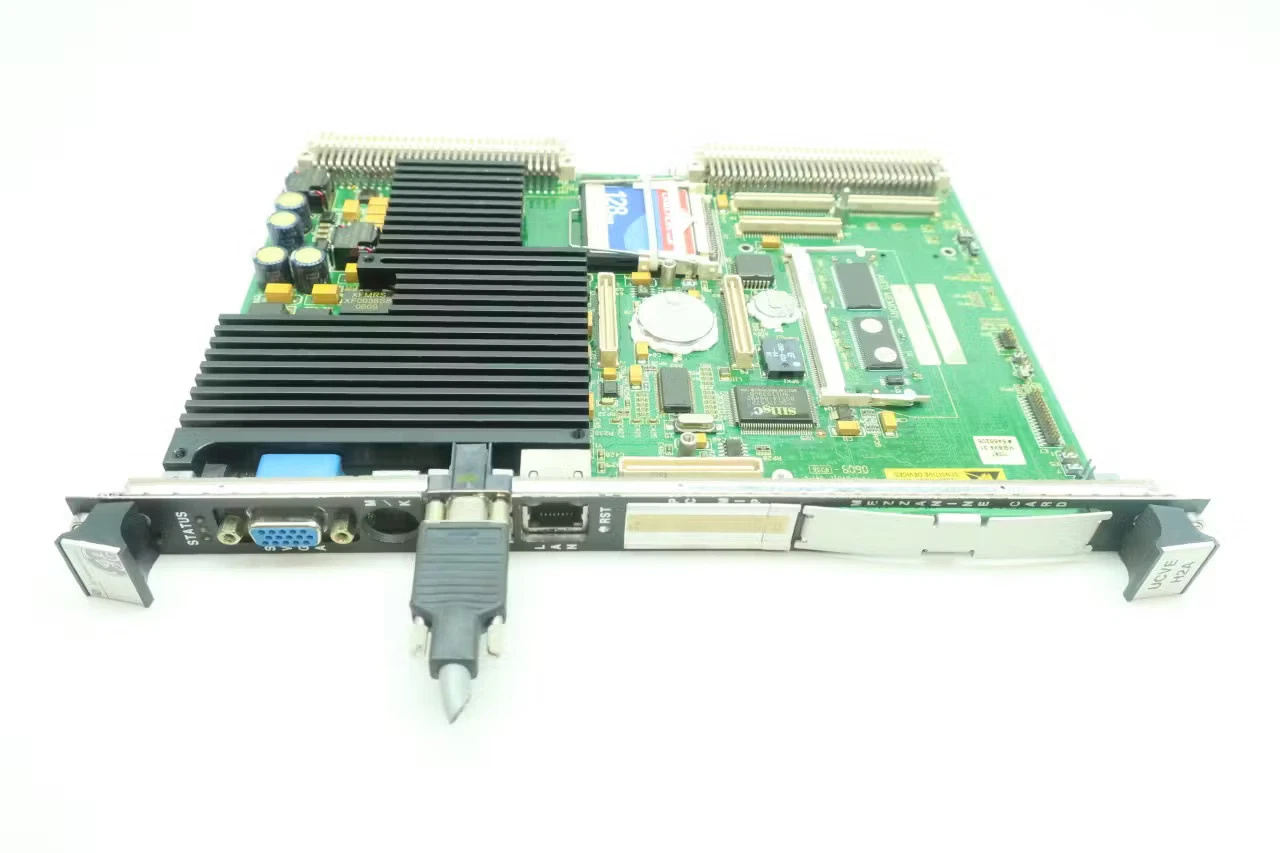

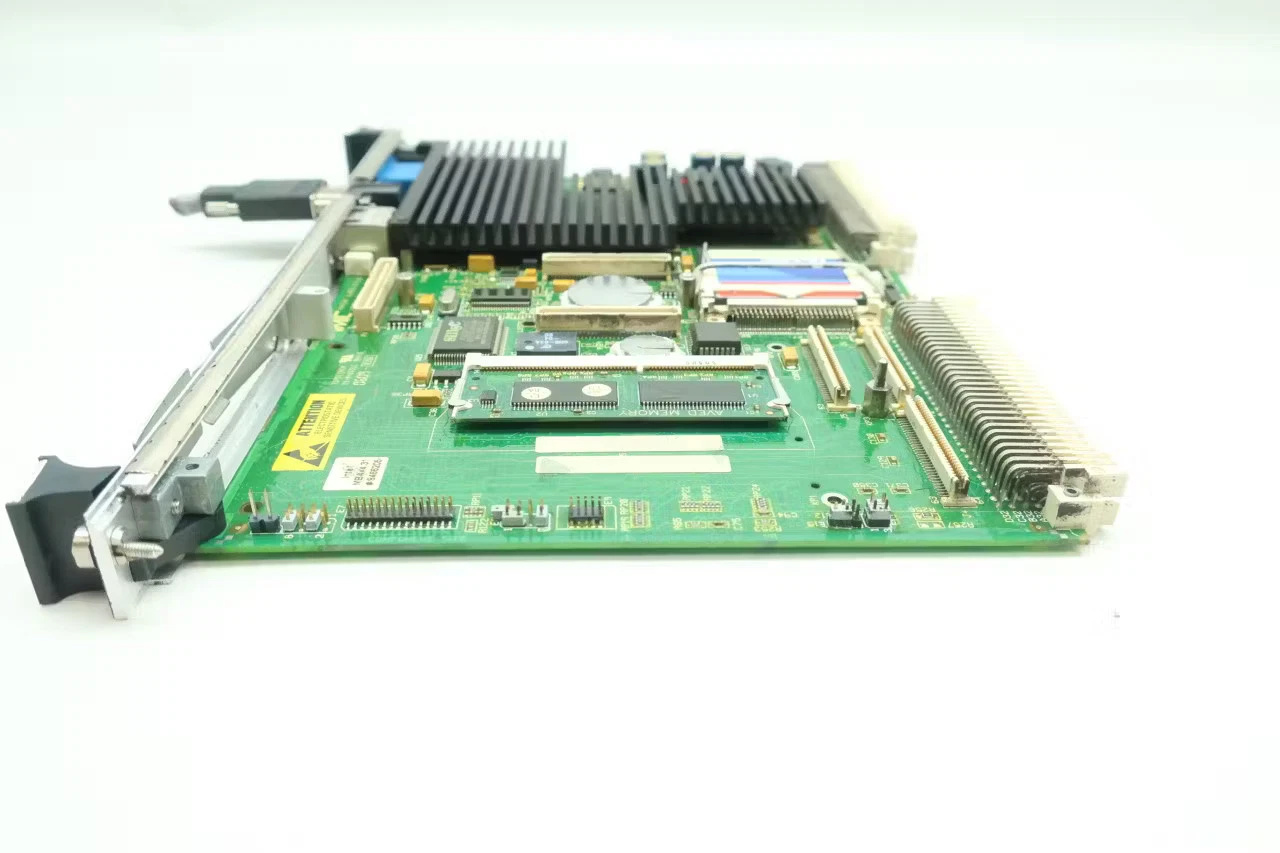

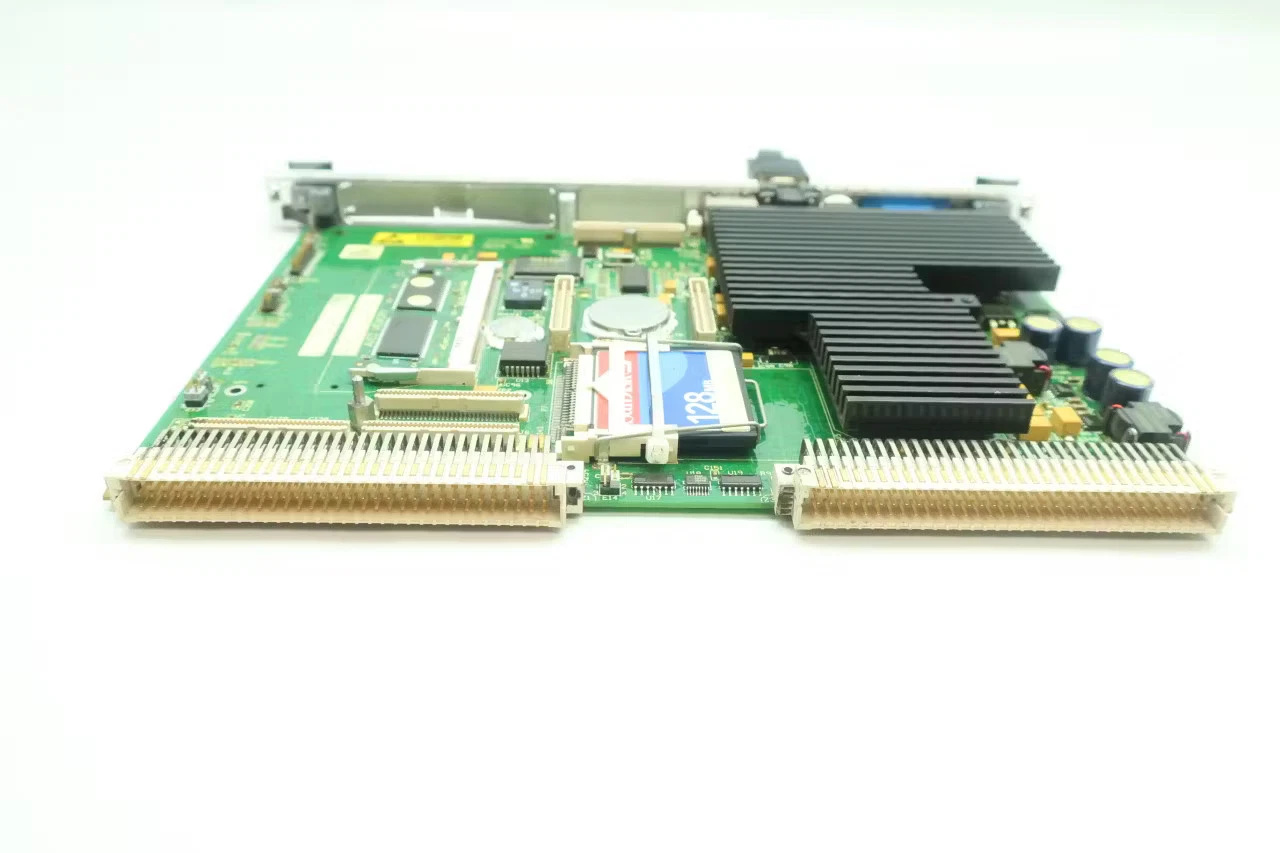

Ge IS215UCVEH2AF
1. Overview
The GE IS215UCVEH2AF is an integral component of General Electric’s (GE) Mark VI Speedtronic Control System, which is mainly applied to complex industrial automation control across power, petroleum, natural gas, papermaking and other industries. As a high-performance VME (Versa Module Eurocard) control board, it is specially designed for the processing and control of industrial signals and data, delivering stable and efficient operation in demanding industrial scenarios.
_______________________________________________________________________________________________________
2. Key Parameters
|
Parameter
|
Detailed Information
|
|---|---|
|
Processor
|
300 MHz Intel Celeron / 133 MHz Pentium (specific model varies by production batch)
|
|
Memory
|
32 MB DRAM (128 MB supported for partial models)
|
|
Storage
|
128 KB L2 Cache; 16 MB or 128 MB flash memory module supported; 8K battery-powered SRAM serving as NVRAM
|
|
Communication Interfaces
|
Ethernet port, COM port, RS-232C, Modbus, Profibus-DP Master (1-3 units)
|
|
Operating Environment
|
Temperature range: -30°C to 65°C
|
|
Dimensions
|
Approx. 8.6 cm × 16.2 cm (slight differences exist for partial models)
|
|
Weight
|
Approx. 0.6 – 2 lbs (approx. 0.27 – 0.91 kg)
|
_______________________________________________________________________________________________________
3. Product Features
- High Performance & Reliability: Adopts high-speed processors and large-capacity memory, and supports a variety of industrial standard communication protocols, which guarantees stable and uninterrupted operation even in harsh and complex industrial environments, meeting the high-precision control demands of core industrial equipment.
- Dual-Sided Design: The control board adopts a dual-sided structure and is equipped with a front panel integrated with LED status indicators and a recessed reset button. This design facilitates real-time monitoring of equipment operating status and quick fault recovery, simplifying daily operation and troubleshooting.
- Flexible Scalability: Supports multiple fieldbus interfaces including Profibus and Modbus TCP/IP, and is equipped with SRTP support. Users can customize I/O modules according to actual application requirements, realizing flexible configuration and diversified docking with industrial equipment.
- Industrial-Grade Durability: Complies with VME standards, adapts to wide-range high and low temperature working environments, and is built with redundant design and complete fault detection mechanisms, effectively enhancing the stability and service life of the control system.
_______________________________________________________________________________________________________
4. Structure & Composition
- Main Control Board: Carries core hardware including the central processor, memory, storage modules and all communication interfaces, which is the core carrier for signal processing and data control of the product.
- Front Panel: Integrates network communication ports, serial ports, LED status indicators and reset buttons, realizing intuitive display of equipment status and convenient human-machine interaction for operation and reset.
- Power Management Module: Built-in electronic components such as capacitors, resistors, chokes and lithium batteries, supports 24V DC input, and can stably output 5V DC voltage, providing reliable power supply for the normal operation of the control board.
_______________________________________________________________________________________________________
5. Application Fields
- Energy & Power Industry: Applied to steam turbine control, power plant automation systems and other core power equipment control scenarios.
- Petroleum & Natural Gas Industry: Used for on-site data collection, transmission and industrial process control of oil and gas projects.
- Manufacturing Industry: Suitable for papermaking machinery control, robot control systems of mainstream brands such as ABB, YASKAWA, KUKA and FANUC.
- Aerospace Industry: Applied to data processing and control systems in military aerospace fields.
————————————————————————————————-
