Number of Channels:8

Thermocouple Types Supported:J, K, E, T, S, R, B

Supply Voltage Range:DC 24V

Input Resistance:300 ohms @ 0°C, 200 ohms @ 100°C

Temperature Measurement Range:-200°C to +1370°C

Operating Temperature Range:-40°C to +85°C

Environmental Conditions:Humidity: 5% to 95% non-condensing

Connection Type:M12 connector

Communication Interface:RS485, MODBUS RTU

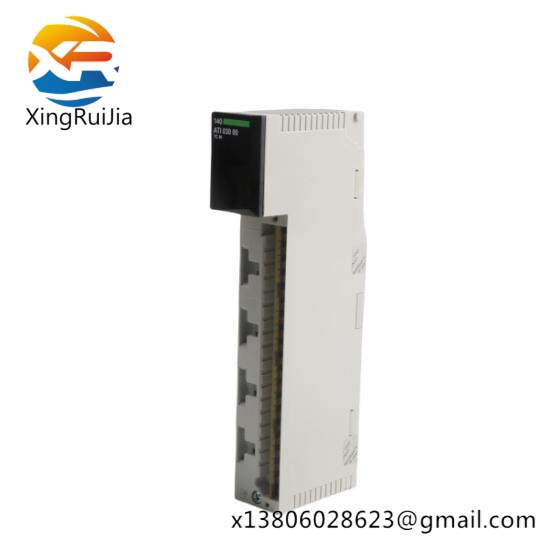

    The Schneider Electric 140ATI03000 Temperature Input Module is engineered for seamless integration into industrial automation systems, offering unparalleled precision and reliability in temperature measurement. Each of its 8 channels supports various thermocouple types, enabling accurate data collection for diverse industrial processes.

    Featuring an operating range from -200°C to +1025°C (-392°F to +1895°F), this module ensures wide-ranging applicability, making it suitable for extreme conditions found in various industries. Its exceptional accuracy of ±0.2% of reading ±2°C (±2°F) max. guarantees high-quality data for critical decision-making processes.

    Equipped with a low-power consumption design, the Schneider Electric 140ATI03000 is energy-efficient, reducing operational costs without compromising on performance. It operates on a stable 16.5VDC power supply with a typical current draw of 12mA, ensuring reliable performance even under fluctuating voltage conditions.

    The module is designed to withstand harsh environmental conditions, with an operating temperature range of -20°C to +60°C (-4°F to +140°F) and storage conditions reaching up to -40°C to +85°C (-40°F to +185°F). This makes it ideal for deployment in a variety of industrial settings, from manufacturing floors to outdoor facilities.

    Installation and setup are straightforward, thanks to its user-friendly interface and comprehensive documentation provided by Schneider Electric. Whether you’re upgrading existing systems or integrating new modules, this temperature input module streamlines the process, saving time and enhancing productivity.
