Operating Voltage:24V DC

Signal Range:-10V to +10V

Input Resistance:1Mohm

Accuracy:±0.2% of full scale

Number of Channels:16

Communication Interface:MODBUS RTU

Environment Temperature:-40°C to +70°C

Humidity:0% to 95% non-condensing

Power Consumption:Max. 1.5W

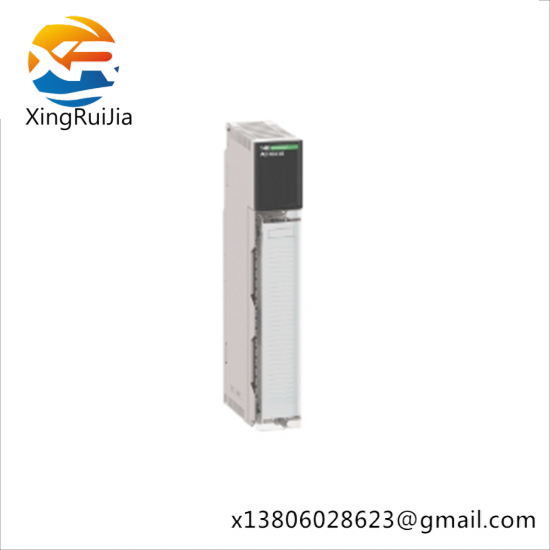

    The Schneider 140AC103 Analog Input Module is a robust solution designed for industrial automation, featuring four high-precision channels capable of acquiring a wide range of analog signals. Its exceptional accuracy (-10V to +10V input range) ensures reliable data capture under diverse operational conditions.

    With a sampling rate of 1000 samples per second, the module guarantees real-time data processing, making it ideal for dynamic industrial applications. Its 12-bit resolution delivers high-quality, detailed data, enhancing system performance.

    Energy efficiency is prioritized with its low power consumption of ≤ 50 mW, reducing overall system costs without compromising performance. The module operates efficiently within a broad temperature range from -40°C to +70°C, ensuring reliability in extreme environments.

    For seamless integration into existing control systems, the Schneider 140AC103 is equipped with Modbus RTU communication, a widely accepted standard in industrial automation. This feature facilitates easy setup and compatibility with various PLCs and other automation equipment.

    Designed for convenience and ease of installation, the module utilizes DIN rail mounting, allowing quick and secure attachment without the need for additional hardware. This modular design supports scalability and adaptability to evolving industrial requirements.
