Product Type:Other

Product ID:BMEXBP1200

Schneider Type Designation:Other

Range of Product:Modicon X80

Accessory / Separate Part Type:Rack

Number of Slots:8 bus X + Ethernet, 4 bus X

Power Consumption:283 mW (3.3 V DC), 3.9 W (24 V DC)

Electrical Connection:1 connector (XBE) expansion module

Current Consumption:164 mA (24 V DC), 86 mA (3.3 V DC)

Net Weight:1.377 kg

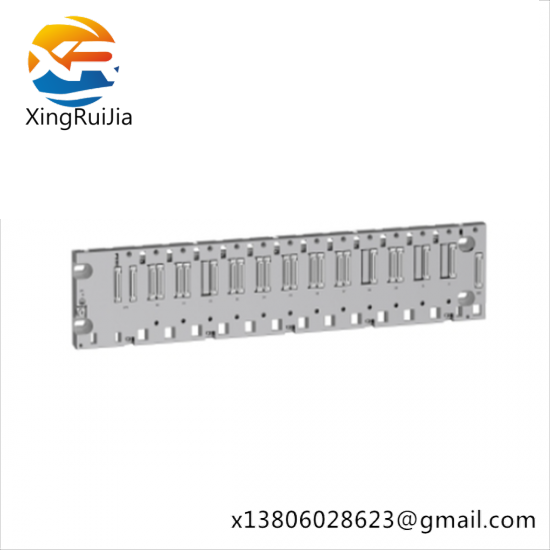

    The Schneider BMEXBP1200 Ethernet Backplane is engineered to optimize industrial automation environments by providing an efficient and reliable communication backbone. This modular design ensures compatibility with a wide array of control systems and enhances system scalability.

    Featuring 8 slots for bus X and Ethernet connections, this backplane supports diverse communication needs within complex manufacturing setups. Its robust power management ensures stable operation under varying conditions, minimizing downtime and maximizing productivity.

    Crafted from high-quality materials, the BMEXBP1200 is built to withstand harsh industrial environments. The durable construction ensures longevity and reliability, backed by Schneider‘s commitment to quality and safety standards.

    Ease of integration is a key feature of the BMEXBP1200. It seamlessly connects with existing systems through its 1 connector (XBE) expansion module, facilitating quick setup and minimizing installation time. This efficiency translates directly into reduced costs and streamlined workflows for manufacturers.

    To further enhance user experience, Schneider offers comprehensive support and documentation for the BMEXBP1200 Ethernet Backplane. This includes detailed technical guides, troubleshooting tips, and compatibility checklists, ensuring that users can fully leverage the product’s capabilities without encountering unnecessary challenges.
