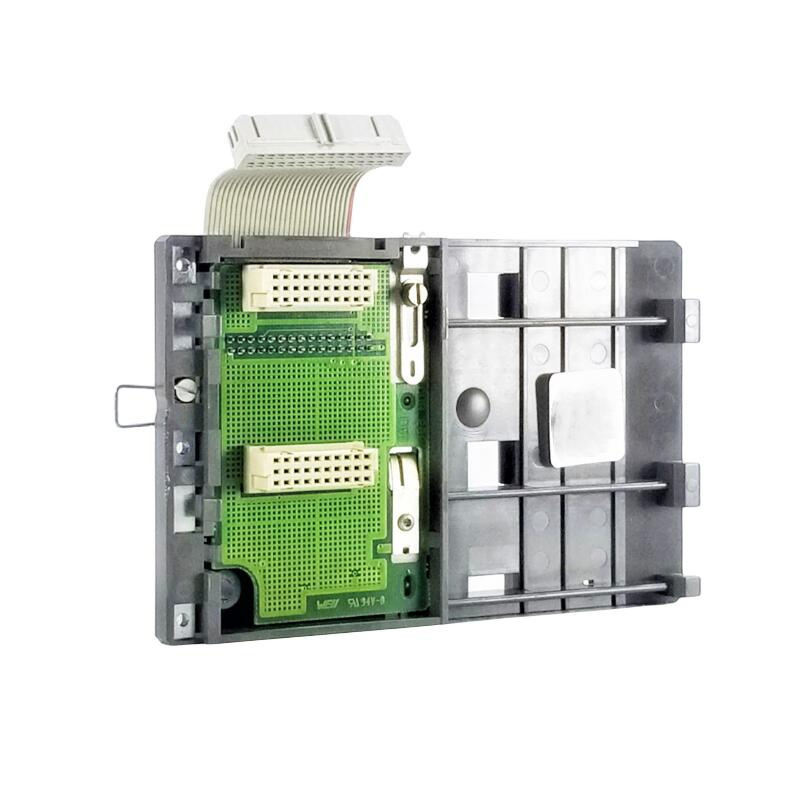

Schneider AEG 92-01887-02
Schneider AEG 92-01887-02 belongs to the PanelMate NNB series of Human-Machine Interfaces (HMI) co-developed by Schneider and AEG (formerly Gould/Modicon). Featuring a compact design, the PanelMate NNB is dedicated to process monitoring and control in industrial sites. It is compatible with multiple PLCs (including Schneider, Siemens, Allen‑Bradley, etc.) and supports mainstream fieldbuses such as Ethernet, PROFIBUS and Modbus.
Key Technical Specifications
Display: 4.3-inch TFT with 480×272-pixel resolution and adjustable backlightOperating Temperature: -25°C to +70°C (compliant with IEC 60730)Power Supply: 24V DC (12V DC optional)Communication Interfaces: Ethernet (10/100 Mbps), RS‑485 (Modbus RTU), USB, CANopen, PROFIBUS DPStorage: 8MB built-in Flash, supports external SD card (up to 32GB)Input/Output: 8-channel digital I/O terminals, 2-channel analog inputs (0-10V / 4-20mA)Protection Rating: IP65 (dustproof and waterproof)Certifications: CE, UL, cUL, ATEX (explosion-proof)
Product Features
Modular Structure: Main unit, display screen and I/O expansion board adopt snap-fit assembly, enabling quick on-site maintenance and replacement.Multi-language & Multi-screen: Built-in 12 languages and supports 10 concurrent screens, meeting multi-station monitoring requirements.Powerful Script Engine: The script language based on IEC 61131-3 standard enables local logic operation and reduces reliance on PLC.Safety Functions: Equipped with user authority management, password protection, screen lock and Safety-Stop interface, compliant with IEC 61508 safety level.Industrial-grade Reliability: Vibration-resistant, shock-resistant and wide temperature range, suitable for harsh environments such as workshops, mines and chemical plants.
Structure & Components
Main Unit Base: Metal frame with built-in main control CPU, memory chips and power module.Display Module: Removable TFT screen with anti-glare glass.I/O Expansion Board: Provides digital/analog I/O and supports DIN-Rail installation.Communication Card: Optional communication modules (Ethernet/RS-485/PROFIBUS, etc.) based on on-site requirements.Installation Accessories: Including DIN-Rail brackets, screw kits and terminal blocks.
Typical Application Fields
Automated Production Lines: Real-time monitoring and parameter adjustment for packaging, assembly, printing and other on-site scenarios.Process Control: Status display and alarm for continuous production processes in chemical, petroleum, food and beverage industries.Energy Management: Operation status monitoring and remote diagnosis of power stations and distribution cabinets.
————————————————————————————————-
