Bently Nevada TK-3E
The TK-3E is a portable calibrator specifically designed by Bently Nevada for on-site use. It is used to perform performance verification and calibration of proximity sensors, vibration sensors, and displacement sensors in Bently monitoring systems (such as the 3500 Series and 1900 Series).
By simulating the vibration and position signals of the shaft, it verifies the accuracy of the monitor’s readings, ensures the sensor system is in good condition, and prevents false alarms or missed alarms caused by reading deviations.
______________________________________________________________________________________________
Core Parameters and Technical Specifications
|
Parameters
|
Specifications
|
|---|---|
|
Electrical Requirements
|
AC 95-125V or 190-250V, 50/60Hz, minimum current 1A
|
|
Amplitude Range
|
50μm – 254μm (0.002″ – 0.010″) Peak-to-Peak
|
|
Speed Range
|
0 – 5000 cpm (Counts Per Minute)
|
|
Dimensions
|
Approx. 215mm x 184mm x 285mm (8.5″ x 7.2″ x 11.2″)
|
|
Weight
|
Approx. 5.9kg (13 lbs)
|
|
Operating Temperature
|
-25°C to +70°C (suitable for most industrial environments)
|
|
Storage Temperature
|
-40°C to +85°C
|
|
Protection Level
|
IP54 (Dust and Water Splash Proof)
|
______________________________________________________________________________________________
Key Product Features
Multifunctional Calibration
- Vibration Simulation: Uses a motor-driven pivotal plate to simulate real shaft vibration signals.
- Position Simulation: Uses a detachable spindle micrometer assembly to simulate absolute shaft position changes.
Strong Versatility
- Probe Compatibility: Equipped with a universal probe mount, supporting probes ranging from 5mm to 19mm (including Bently 3300 Series probes).
- Modular Design: Magnetic base design for quick on-site placement and use.
Portable and Maintenance-Free
Adopts a rugged housing and internal electronic components, suitable for frequent on-site inspection work, no additional maintenance equipment required.
______________________________________________________________________________________________

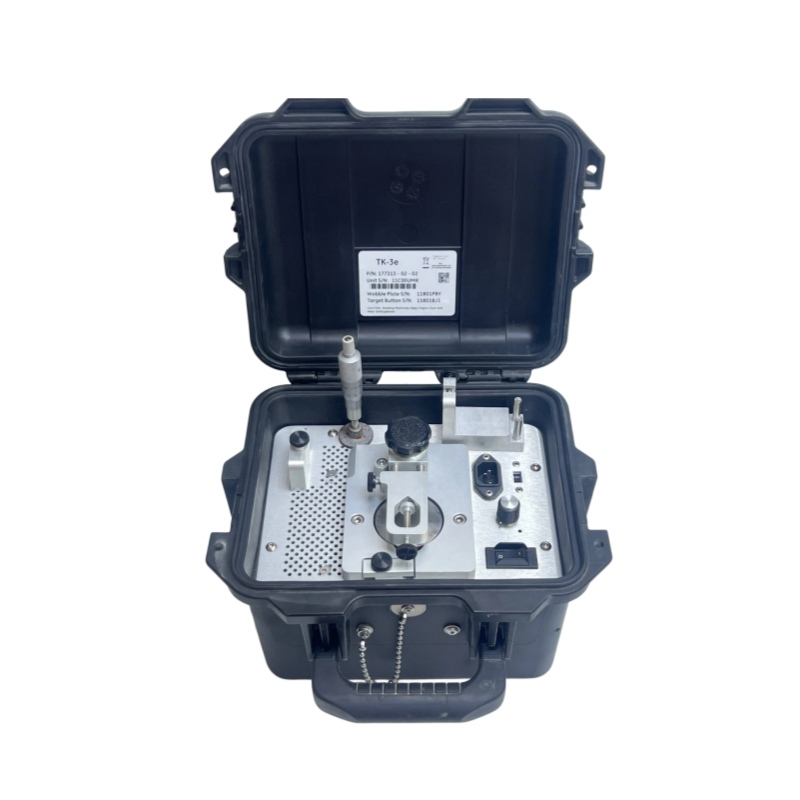

Structure and Composition
- Electric/Pneumatic Drive System: Provides movement of the pivotal plate to simulate vibration signals.
- Pivotal Plate: Installed on the motor to simulate shaft vibration.
- Micrometer Assembly: Used to accurately simulate absolute shaft position (displacement) changes.
- Universal Probe Bracket: Detachable design, compatible with proximity probes of different specifications.
- Magnetic Base: Facilitates fixing or moving the instrument on metal surfaces.
______________________________________________________________________________________________
Application Fields
- Steam Turbines (main shaft vibration monitoring)
- Compressors (vibration and displacement monitoring)
- Pumps (bearing and impeller monitoring)
- Fans (impeller and bearing monitoring)
- Turbines (axial and radial displacement monitoring)
————————————————————————————————-
