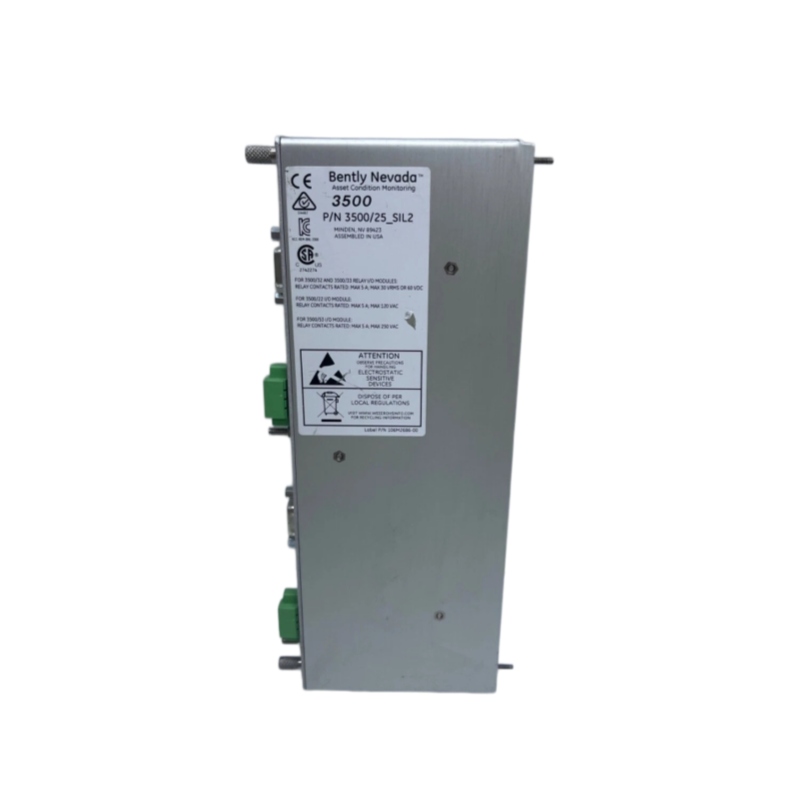

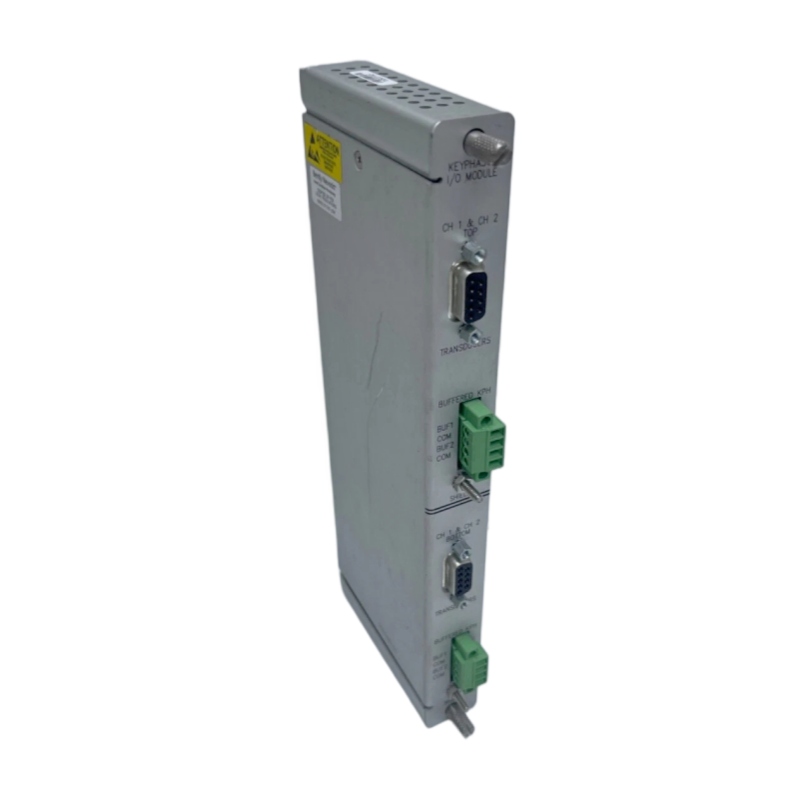

Bently Nevada 3500 25
1. Overview
The Bently Nevada 3500/25 is an enhanced keyphasor module specifically designed for use in the Bently Nevada 3500 series machinery protection and condition monitoring system. It is responsible for converting analog signals from keyphasors or proximity sensors on rotating machinery into digital keyphasor signals, providing a time reference for subsequent vibration analysis and fault diagnosis.
______________________________________________________________________________________________________
2. Parameters
- Input Range: Widely supports 1-1,200,000 CPM (rotational speed) or 0.017-20 kHz (frequency), and supports ±10V voltage input.
- Output Accuracy: Provides high-precision phase (±0.1°) and rotational speed (±0.05%) measurements.
- Impedance: Minimum input impedance of 21.8kΩ, maximum buffered output impedance of 504Ω, compatible with various on-site sensors.
- Power Consumption: Low-power design with a typical power consumption of less than 5W, suitable for long-term operation.
- Protection Level: Usually IP67 protection, capable of stable operation in high-temperature, high-humidity and harsh vibration environments..
______________________________________________________________________________________________________
3. Features
- High Precision: Ensures the accuracy of mechanical phase data and improves the precision of fault diagnosis.
- Two-Channel Design: Supports two independent keyphasor signal inputs, providing system redundancy and multi-axis monitoring capability.
- Modular Structure: Adopts a compact modular design, which can be directly installed in the 3500 series rack for easy system integration.
- Strong Compatibility: Supports photoelectric and magnetic induction sensor inputs, compatible with different types of on-site equipment.
- Safety and Reliability: Built-in protection circuit to prevent short circuit or overvoltage, ensuring safe operation of the system.
______________________________________________________________________________________________________
4. Structure & Composition
- Signal Processing Unit: Responsible for receiving and amplifying weak signals from on-site sensors.
- Digital Conversion Unit: Precisely converts analog signals into digital keyphasor signals.
- Communication Interface: Used for data interaction with the host and other modules of the Bently Nevada 3500 system.
- Power Management Module: Provides stable working power and has overload protection function.
______________________________________________________________________________________________________
5. Applications
- Energy Industry: Generator sets, steam turbines, gas turbines, etc.
- Petrochemical Industry: Large pumps, compressors, centrifuges, etc.
- Industrial Manufacturing: Metal processing machine tools, papermaking machinery, etc.
- Other Fields: Wind turbines, shipbuilding equipment, etc.
______________________________________________________________________________________________________
6. Installation & Maintenance
Installation
Adopting a modular design, it supports panel mounting or rack mounting. It is usually directly inserted into the rack slot of the 3500 system, connected to on-site sensors and power supply, and the installation process is simple and fast.
Maintenance
The modular design makes replacement and maintenance very convenient. With low power consumption and high reliability, it is suitable for long-term continuous operation. During maintenance, mainly check the sensor signal quality and power connection status.
————————————————————————————————-
