BENTLY NEVADA 3500-92
1. Overview

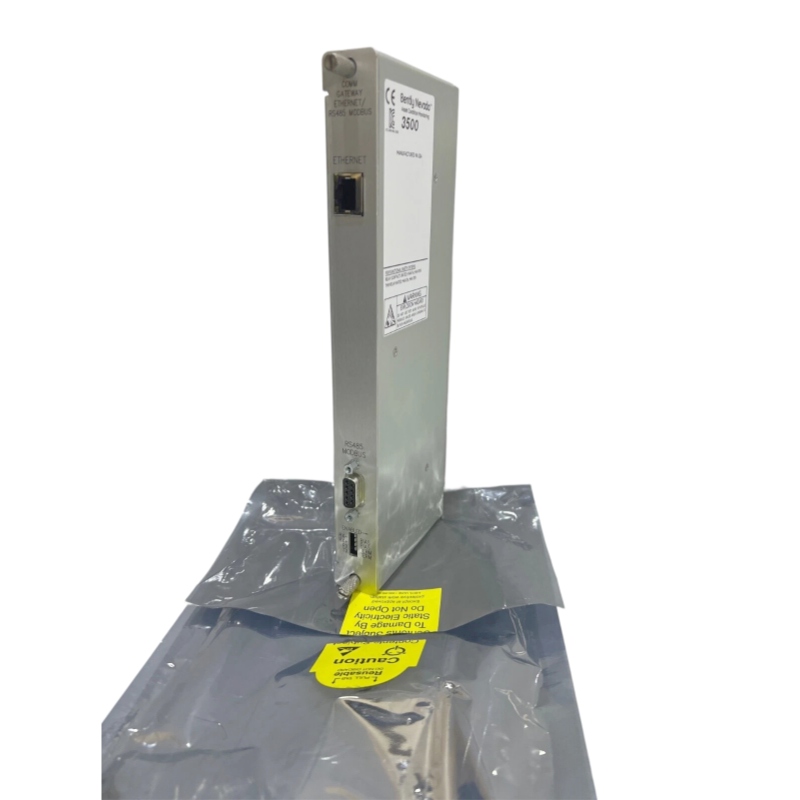

BENTLY NEVADA 3500-92 (Part Number: 136180-01) is a multi-functional communication gateway module, which is part of the BENTLY NEVADA 3500 series monitoring system. This module is mainly used to integrate the BENTLY NEVADA 3500 system with process control and other automation systems to achieve interconnection and intercommunication of data.
______________________________________________________________________________________________
2. Specifications
- Operating Voltage: 24V DC
- Power Consumption: Approximately 5 Watts
- Operating Temperature: -40℃ to +85℃
- Protection Level: IP65 (Dustproof and Waterproof)
- Dimensions: Standard 3500 module size, approximately 85 mm x 45 mm x 25 mm
- Weight: Approximately 0.2 to 0.5 kilograms
______________________________________________________________________________________________
3. Product Features
- Multi-Protocol Support: Compatible with Modbus/RTU, Modbus/TCP and BENTLY NEVADA proprietary protocols.
- Flexible Interfaces: Provides RS232, RS422, RS485 serial interfaces and TCP/IP Ethernet interface, supporting multiple communication methods.
- Modular Design: Small size, light weight, easy installation, supports rail mounting, and is convenient for maintenance and expansion.
______________________________________________________________________________________________
4. Structure and Composition
- Communication Interface Board: Includes serial communication ports (RS232/RS422/RS485) and Ethernet interface (RJ45).
- Power Supply Module: Responsible for receiving 24V DC power and distributing it to the communication circuit.
- Signal Processing Unit: Responsible for protocol conversion and data encapsulation.
______________________________________________________________________________________________
5. Application Fields
- Power Generation Industry (e.g., steam turbine, generator set monitoring)
- Oil and Gas
- Pulp and Paper Chemical Industry
- Iron and Steel, Metallurgy
- Mining and Mineral Industry
______________________________________________________________________________________________
6. Installation and Maintenance
Installation
Adopt the standard 3500 rack mounting method, usually installed on the rack panel or side wall. During installation, ensure stable power supply to the rack and correct connection of communication lines.
Maintenance
The module has high reliability. Maintenance mainly includes regular inspection of power connections, integrity of communication lines, and cleaning of dust on the module surface. Due to the protection level of IP65, it can usually operate for a long time in a dust-free and non-corrosive industrial environment.
————————————————————————————————-
