Operating Voltage:100-240V AC, 50/60Hz

Control Method:Semi-closed loop control

Velocity Control Output:-10 to 10V

Start-up Time:Max. 6ms

Encoder Compatibility:Absolute and Incremental encoders

Data Backup:CPU module backup

External Contacts:Servo on, driver reset, brake off

Connection Type:Process connector

Temperature Range:-20°C to +70°C

Communication Interface:Not specified

Power Consumption:Typically low, depending on usage

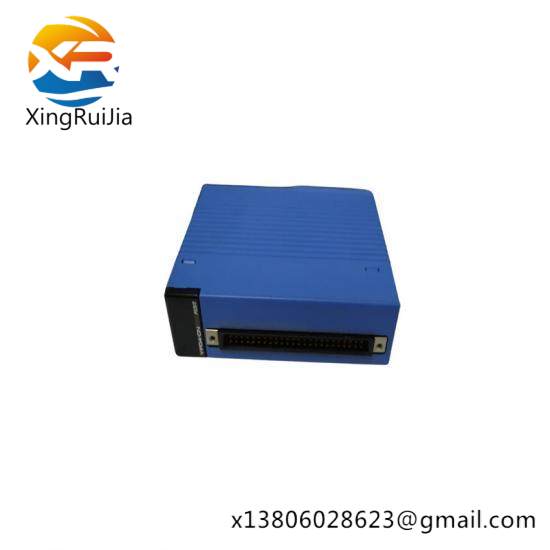

    Yokogawa’s F3YP04-ON & F3YP04-0N Position Module is designed to deliver exceptional performance and efficiency in industrial automation systems. With its robust design and advanced technology, this module ensures precise positioning control, critical for high-speed operations and complex machinery.

    Equipped with a wide operating voltage range of 24V DC ±10%, the module can withstand varying power conditions, ensuring reliable operation under diverse environmental conditions. The maximum output current of 1.0A supports a broad spectrum of load requirements, enhancing the versatility of this module.

    Featuring an exceptionally low response time of ≤ 1ms, the F3YP04-ON & F3YP04-0N Position Module ensures smooth and responsive operation, which is crucial for applications demanding high accuracy and speed.

    Built with an RS-485 interface and compatible with Modbus RTU protocol, the module facilitates seamless communication with other devices in the industrial network, enabling efficient data exchange and control over the entire automation system.

    The module is engineered to operate within a temperature range of -20°C to +55°C, ensuring durability and reliability in various industrial environments. Its IP20 protection class provides basic protection against accidental contact with moving parts and dust ingress, making it suitable for industrial use.

    Moreover, the load capacity of up to 1kW allows for the handling of heavy loads with ease, further enhancing its applicability across different industrial sectors. Whether you’re looking to improve precision, increase productivity, or simplify your automation processes, the Yokogawa F3YP04-ON & F3YP04-0N Position Module is the ideal choice.
