Startup Time:6 ms max.

Control Output:-10 to 10 V

Data Backup:Backup using the CPU module

External Contact Output:Servo on, driver reset and brake off

Encoder Type:Absolute or Incremental (Phase A/B)

Encoder Resolution:Up to 2M pulses per second

Control System:Semi-closed loop control based on encoder feedback

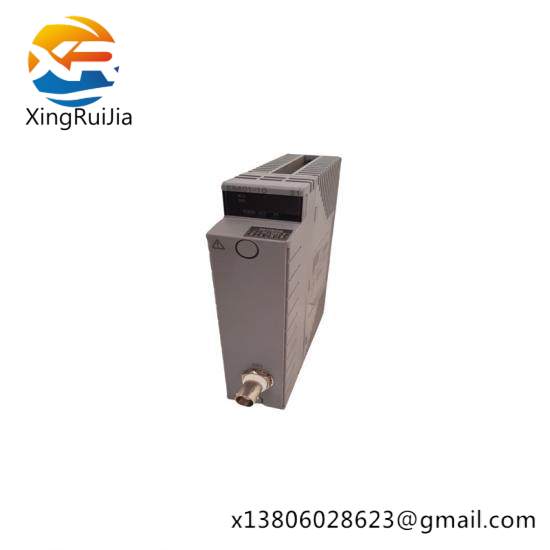

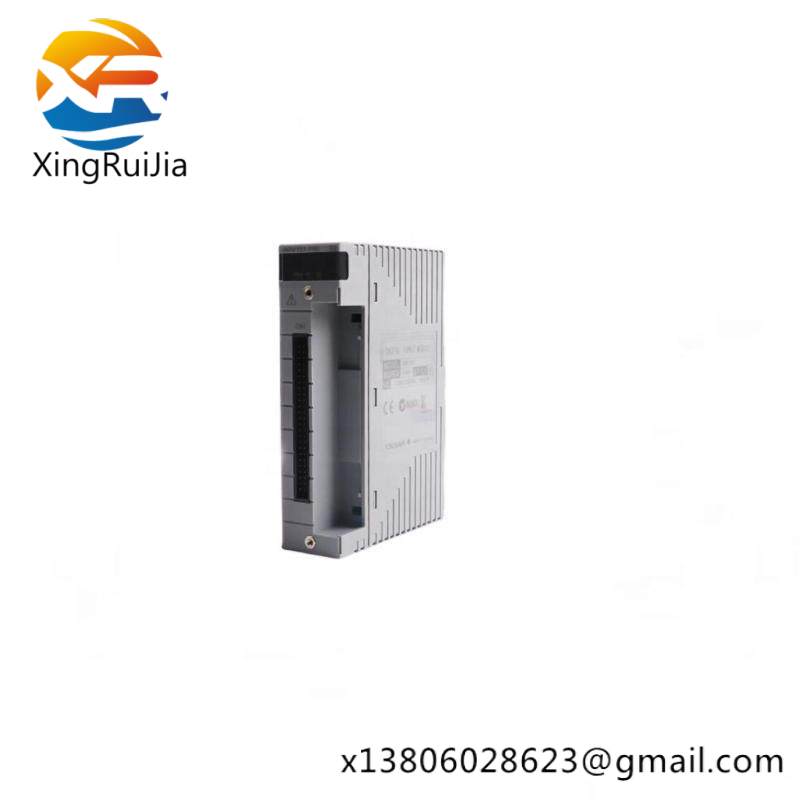

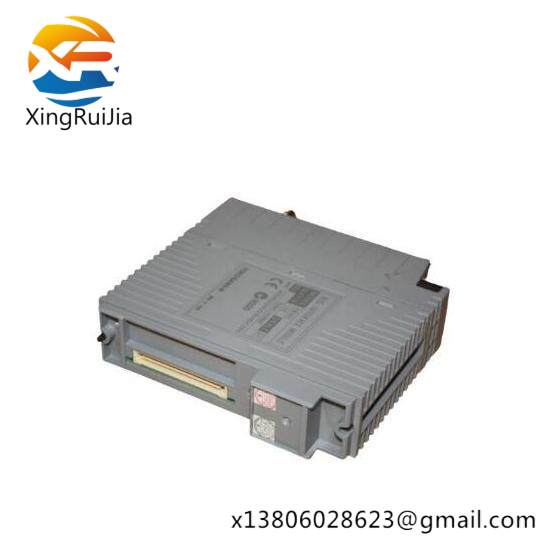

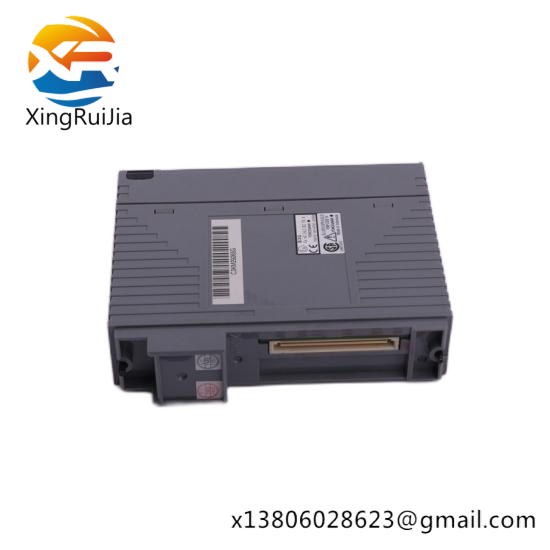

    The YOKOGAWA F3NC02-0N Positioning Module is designed for industrial applications demanding high accuracy and speed. With a maximum startup time of just 6 ms, this module ensures rapid response times, making it ideal for real-time control systems. The module supports velocity control with an output range from -10 to 10 V, providing precise control over motor speeds. The data backup feature allows for seamless operation even in the event of power disruptions, ensuring uninterrupted process control. The external contact output includes signals for servo activation, driver reset, and brake deactivation, enhancing system reliability. Equipped with an incremental encoder (phase A/B) with a line driver capable of handling up to 2 million pulses per second, the F3NC02-0N offers exceptional resolution and accuracy. Its semi-closed loop control system, based on encoder feedback, ensures optimal performance and stability in various industrial environments.
