Product Type:Analog Output Module

Module Type:AA1543-H00-S1

Communication Protocol:HART

Output Signal:4-20 mA

Number of Channels:1

Power Supply Voltage:DC 12-24V

Operating Temperature Range:-20°C to 70°C

Dimensions:120mm x 100mm x 70mm

Weight:0.3kg

Environmental Certification:IP65

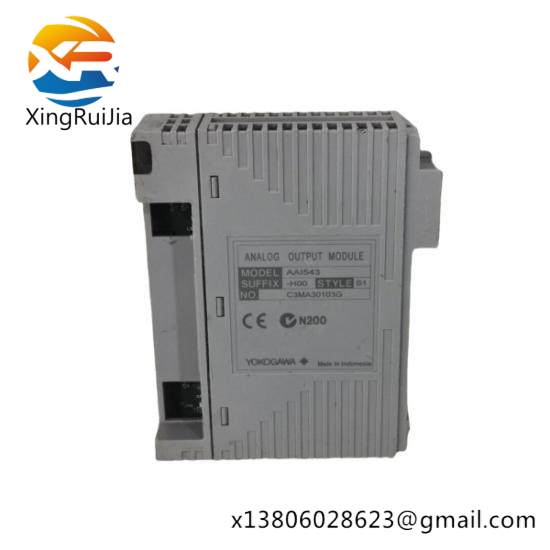

    The Yokogawa AA1543-H00-S1 module is a versatile solution for integrating precision control into complex industrial processes. Its advanced HART 7 communication ensures seamless connectivity with a wide range of field devices, facilitating easy setup, operation, and maintenance.

    With a single-channel design, this module is capable of generating accurate 4-20 mA current signals, essential for process control applications requiring high precision and reliability. The compact form factor allows for efficient installation in various industrial environments.

    Featuring a robust power supply that operates within the range of 12 to 24 V DC, the module is designed to withstand demanding industrial conditions, ensuring stable performance even under fluctuating power conditions.

    Offering a broad operating temperature range from -20°C to +70°C, the AA1543-H00-S1 is suitable for use in extreme environments, making it an ideal choice for industries with challenging operational conditions.

    The module’s lightweight and compact design, combined with its IP20 protection rating, makes it easy to install and maintain without compromising on safety or functionality. It is equipped with standard terminal blocks for easy connection to external devices, streamlining the setup process and reducing downtime.
