Model Number:SGMJV-04AAA61

Motor Type:Brushless

Power Rating (kW):0.4

Voltage (VAC):200 to 230

Rated Speed (RPM):3,000

Max Speed (RPM):5,000

Mounting Type:Base Mounted

Encoder Type:Incremental Encoder

Bit Resolution:13 BIT

Constant Torque (Nm):0.9

Peak Torque (Nm):2.7

Approvals:UL, CE, cUL Recognized

IP Rating:IP67

Weight (kg):0.5

Dimensions (mm):100x100x30

Operating Temperature (°C):-20 to +60

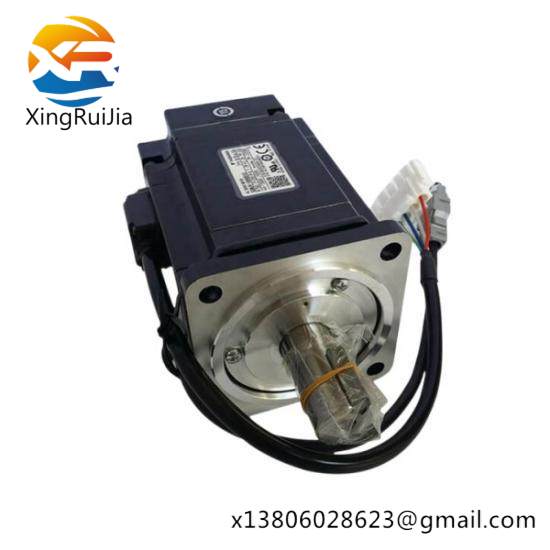

    Introducing the YASKAWA SGMJV-04AAA61 Brushless Servomotor, the pinnacle of precision motion control in industrial automation. Engineered for efficiency and reliability, this compact motor boasts an impressive capacity of 0.4 kW, ensuring smooth operation in even the most demanding applications.

    Featuring a continuous output current of 2.8 Amperes and a maximum output current of 8.5 Amperes, this motor is designed to handle a broad spectrum of operational demands, delivering consistent performance across various industrial settings.

    With support for three-phase, 200 to 230 VAC power supplies and a single-phase, 200 to 230 VAC control supply, the YASKAWA SGMJV-04AAA61 is adaptable to a wide range of electrical systems, ensuring seamless integration into existing infrastructure.

    The base-mounted design of this servomotor offers both convenience and stability, while the rack-mount option provides flexibility for diverse installation scenarios. This feature ensures optimal performance regardless of the workspace layout or equipment setup.

    Equipped with advanced brushless technology, the YASKAWA SGMJV-04AAA61 ensures minimal maintenance requirements and extended operational life, significantly reducing downtime and maintenance costs associated with traditional motor systems.
