Operating Voltage:400-480V AC

Output Power:45kW

Frequency Range:40-60Hz

Control Method:PWM Inverter Control

Braking Circuitry:Integrated Dynamic Braking System

Cooling System:Blower Forced Air Cooling

Environmental Rating:IP21

Protection Class:Class F Insulation

Dimensions (WxDxH):1200x400x1300mm

Weight:Approx. 150kg

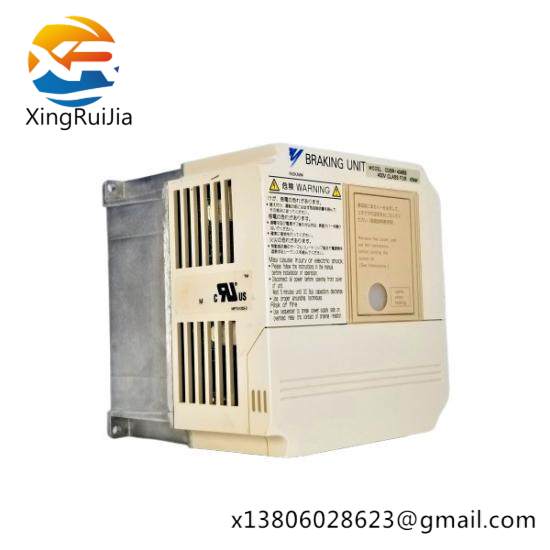

    The Yaskawa CDBR-4045B AC Drive Option BRAKING UNIT is meticulously designed for industries requiring high-efficiency and precise control, ensuring optimal performance under demanding conditions.

    This versatile unit is equipped with advanced safety features such as a safe torque off function, making it a reliable choice for critical operations where safety is paramount.

    With a robust 400V voltage class and a capacity to handle motors up to 45kW (60HP), the CDBR-4045B is suitable for a wide range of industrial applications, from textile processing to woodworking, and beyond.

    Featuring an 18A rated discharge amp and peak 10% duty cycle capability of 60A, this option ensures smooth operation and rapid deceleration, enhancing process efficiency and reducing wear on mechanical components.

    Compact yet powerful, the CDBR-4045B is engineered with a lightweight design weighing just 0.165g, facilitating easy integration into existing systems without compromising performance.
