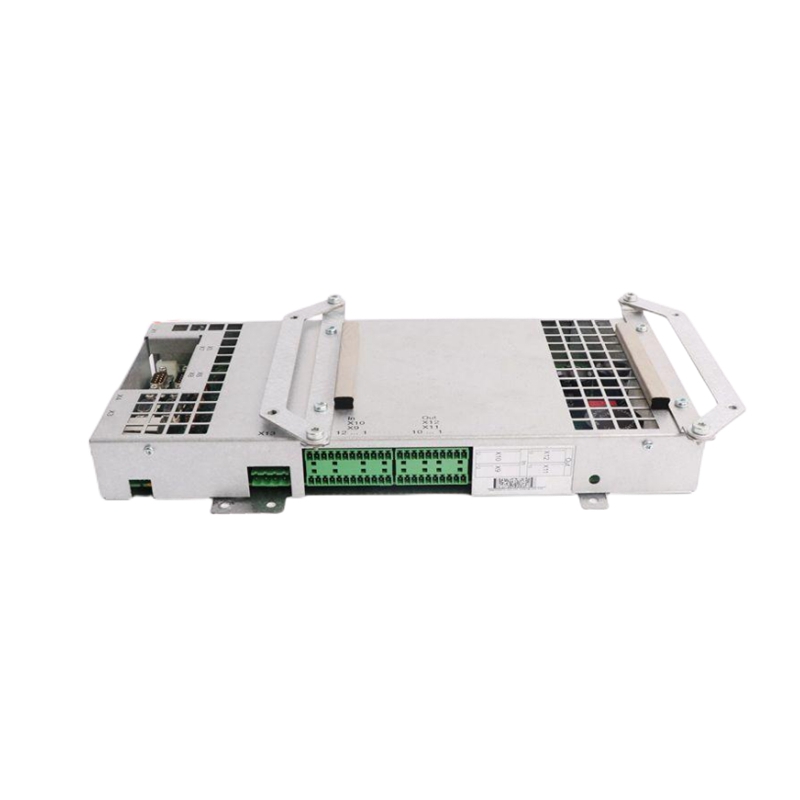

XYCOM PM9450

XYCOM PM9450 is an industrial control module belonging to the XYCOM product series, designed to the XVME‑244 specification. Tailored for high-reliability industrial sites, it supports a variety of fieldbuses and Ethernet interfaces, making it ideal for automation systems in machine tools, packaging, printing, process control, and other industrial scenarios.

Key Specifications

Processor

Memory

Storage

Operating System

Interfaces

• Video: 1 × VGA
• Communication: 2 × RS‑232, 2 × RS‑422/485, 1 × 10/100 Mbps Ethernet
• USB: 4 × USB 2.0
• Audio: Line Out, Mic In

Power Supply

Dimensions/Weight

Operating Environment

Product Features

1. Modular DesignFeaturing a plug-and-play structure with hot-swappable capability, it enables rapid deployment and easy maintenance, minimizing system downtime during component replacement.
2. High ReliabilityCompliant with CE and FCC Class A standards, it boasts strong anti-interference performance, making it suitable for harsh industrial environments with complex electromagnetic conditions.
3. Multi-Interface CompatibilityEquipped with rich fieldbus, Ethernet, and USB interfaces, it meets the connection requirements of diverse on-site devices, ensuring seamless integration into existing automation networks.
4. Low-Power Heat DissipationAdopts low-power chips and passive heat dissipation structure, which reduces energy consumption and extends the service life of the module without the need for additional cooling fans.
5. ScalabilityMemory, storage, and I/O can be customized according to actual needs, supporting large-scale data collection and processing for data-intensive industrial applications.

Structure and Components

1. CPU MotherboardEquipped with an optional Xeon processor, delivering powerful computing capabilities to handle complex industrial control algorithms and real-time data processing tasks.
2. Memory/Storage ModuleComes with slots for DDR2/DDR4 memory sticks and SSD/HDD hard drives, allowing flexible expansion of storage and memory capacity based on application demands.
3. I/O Expansion CardsIncludes interface cards for RS‑232/RS‑485, Ethernet, USB, VGA, and audio, providing diversified connectivity options for different peripheral devices.
4. Power ModuleAccepts 24 V DC input, with built-in voltage stabilization and power management functions to ensure stable power supply for the entire module.
5. ChassisMade of aluminum-iron metal structure with IP65 protection rating, featuring a compact size that saves on-site installation space while ensuring dust and water resistance for the front panel.
