Product Type:Servo Position Controller

PLC Type Designation:Woodward 8200 Series

Nominal Voltage:24 Vdc

Operating Range:2-22mA

Power Dissipation:20 W

Weight:1.55 kg

Current Range:± 10 – ±250 mA

Input Impedance:200 Ω

Resolution:11 bits

Linearity:0.1% of Full Scale

Node Isolation:500 Vrms

Output Filter:6 ms lag

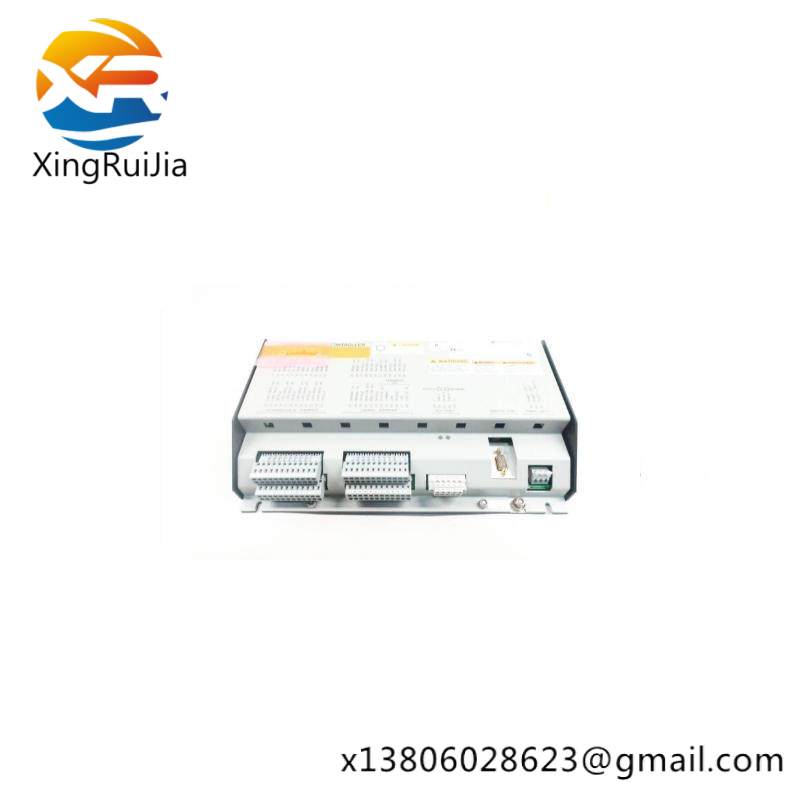

    The Woodward 8200-226 Servo Position Controller Module is a sophisticated piece of equipment designed to meet the demands of advanced industrial control systems. This compact module is specifically engineered for precise control over both proportional and integrating servo valves, ensuring smooth operation and enhanced efficiency in a variety of applications.

    Featuring a nominal voltage of 24 Vdc and an operating current range of 2-22mA, the 8200-226 module is versatile enough to adapt to different environments and operational requirements. Its high power dissipation of 20 W ensures reliability even under heavy loads, making it a robust choice for industrial settings.

    With an input impedance of 200 Ω and a weight of 1.55 kg, this module is designed for easy integration into existing systems without compromising on its performance capabilities. The Woodward 8200-226 is a testament to the company’s commitment to delivering cutting-edge technology tailored to the needs of the modern industrial landscape.

    For users requiring precise control and high accuracy, the 8200-226 Servo Position Controller Module is an indispensable tool. Its ability to position proportional and integrating servo valves with exceptional precision sets it apart, making it ideal for applications where reliability and performance are paramount.

    Incorporating the Woodward 8200-226 into your industrial automation system ensures not only optimal performance but also compatibility with a wide range of components and systems, offering seamless integration and enhanced operational efficiency.
