Operating Temperature Range:-40°C to +125°C

Response Time:≤0.1s

Input Resistance:1KΩ

Output Signal:4-20mA

Supply Voltage:DC 12V

Power Consumption:≤1W

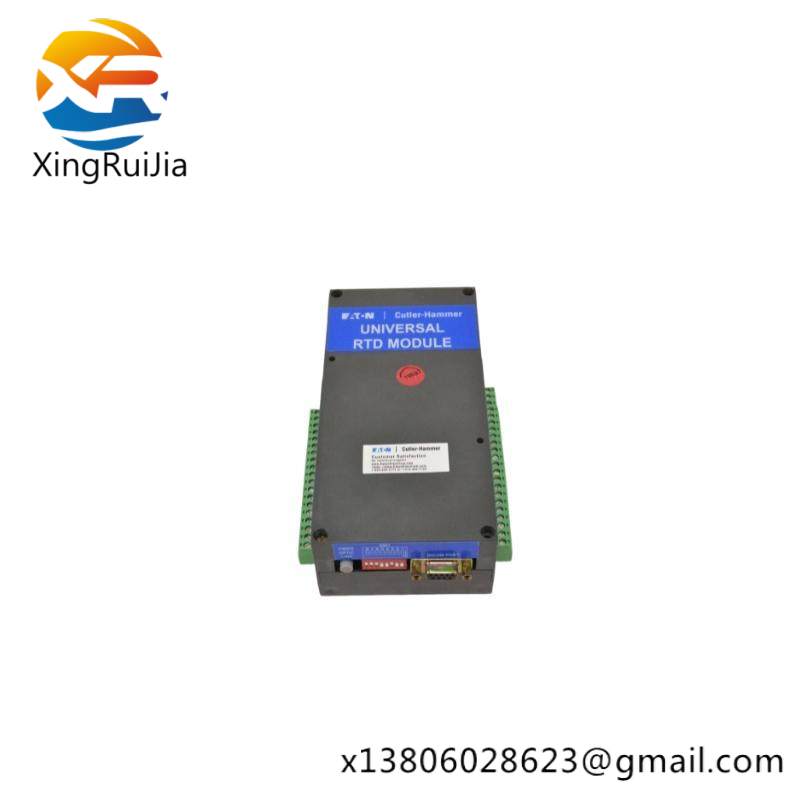

    Introducing the Westinghouse 2D78559G01 Eaton Universal RTD Module, a versatile and precise solution for monitoring and controlling temperatures in industrial environments. This module is specifically designed to ensure accurate real-time temperature readings, essential for maintaining optimal operational conditions in various industries.

    Featuring an extensive operating range from -200°C to +850°C, this module can adapt to a wide variety of applications, from cryogenic processes to high-temperature furnaces. Its high accuracy at 25°C, measured as ±0.1% of reading ±1 count, ensures reliability in critical measurements.

    Equipped with a robust DC supply voltage of 9V to 30V, the module supports diverse power sources, ensuring compatibility and stability across different industrial setups. With a current consumption of ≤ 20mA, it efficiently conserves energy while delivering precise output signals via its 4-20mA interface.

    For seamless integration with existing control systems, the module supports Modbus RTU communication protocol, a standard in industrial automation. This facilitates easy setup and configuration, allowing for remote monitoring and control through a computer or programmable logic controller (PLC).

    Designed with durability in mind, the enclosure has an IP65 rating, protecting it against dust and water ingress, making it suitable for harsh industrial environments. The compact dimensions of 100mm x 75mm x 30mm and a lightweight design of 0.15kg ensure it can be easily integrated into tight spaces without compromising functionality.
