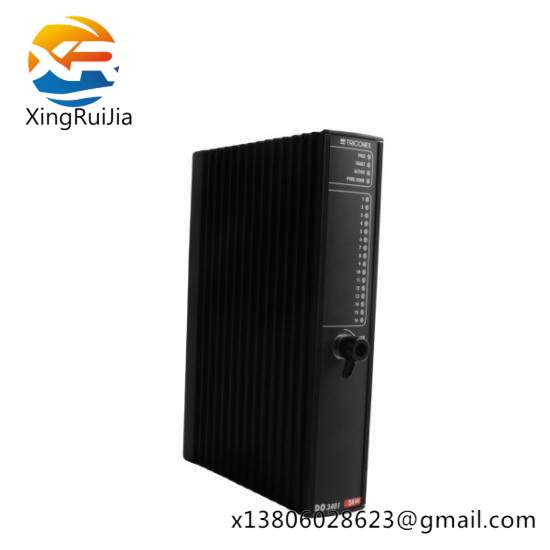

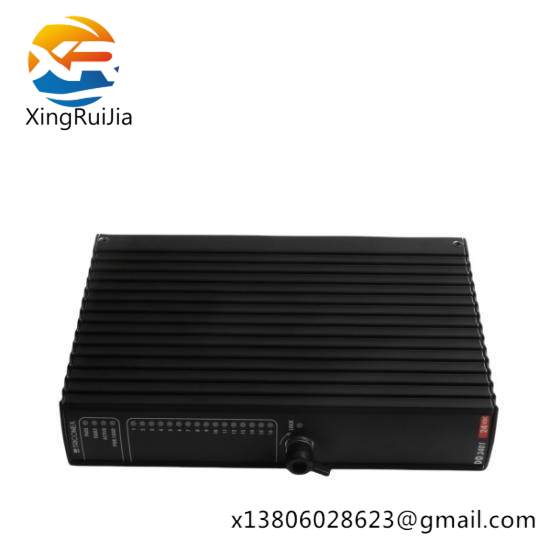

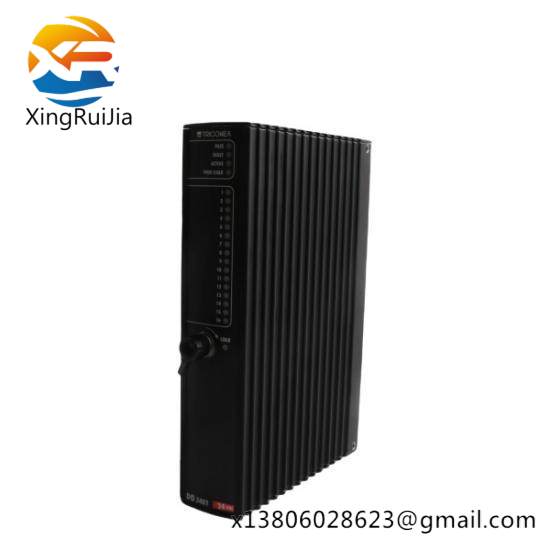

Model Type:Digital Output Module

Manufacturer:Triconex

Model Number:3401

Output Voltage:200 V

Output Frequency:44 kHz

Certified Product:3401 DO3401

Series:3401 DO3401

Operating Voltage Range:15 to 30 VDC

Absolute Maximum Output Voltage:33 VDC

Absolute Maximum Reverse Input Voltage:- 0.6 VDC

Switching Current (Self-Limiting):<4.8 A

Switching Current (Typical):3.0 A

Degraded Mode Current (Self-Limiting):> 0.7 A

Degraded Mode Current (Typical):1.5 A

Field Alarms:[“Loss of Field Power”,”Output Point Shorted”]

Loop-back Thresholds:[{“Range”:”0–5 VDC”,”State”:”Off”},{“Range”:”6–14 VDC”,”State”:”Transition”},{“Range”:”15–30 VDC”,”State”:”On”}]

Leakage to Load (Off):Measured

    Engineered for unparalleled reliability and performance in industrial automation environments, the Triconex 3401 Digital Output Module is a cornerstone of modern control systems. Its advanced design ensures seamless integration with a variety of industrial protocols, making it an indispensable tool for system integrators and engineers alike.

    Featuring a versatile 16-point configuration, this module supports both commoned and non-commoned outputs, providing flexibility for diverse applications. The module’s high-resolution switching capabilities and self-limited currents ensure precise control over actuators and devices, minimizing the risk of overcurrent and enhancing system safety.

    Withstanding extreme environmental conditions, the Triconex 3401 is rated to operate within a wide temperature range, ensuring consistent performance even under harsh industrial conditions. The module’s intelligent field alarm system provides real-time monitoring and alerts, enabling proactive maintenance and reducing downtime.

    Crafted from high-quality materials, the Triconex 3401 Digital Output Module offers exceptional durability and reliability. Its modular design facilitates easy installation and maintenance, saving valuable time and resources during system upgrades or repairs.

    The Triconex 3401 is fully compliant with industry standards and regulations, ensuring compatibility with a broad range of equipment and systems. This commitment to quality and safety is backed by Triconex‘s extensive support network, providing users with access to expert advice and technical assistance throughout the lifecycle of their projects.
