Module Type:IGBT

Power Rating:50kW

Operating Voltage:600V

Operating Current:60A

Switching Frequency:12kHz

Package Type:DLC

Cooling Method:Air Cooling

Mounting Style:Panel Mount

Material:Aluminum Alloy

Certifications:UL, CE, ISO9001

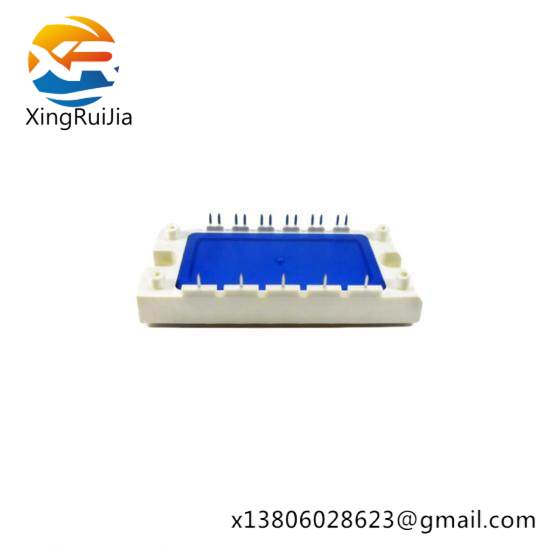

    Introducing the TDE BSM50GD60DLC/CS8FA IGBT Module, a powerful and reliable solution for your industrial control systems. Engineered for high-power applications, this module offers unmatched performance in a compact design, ensuring efficient energy transfer and precise control.

    Featuring a robust power rating of 50kW and a wide operating temperature range from -40°C to +175°C, our module is designed to withstand extreme conditions without compromising on efficiency. With a maximum voltage of 600V DC and a current rating of 60A, it ensures stable operation under various loads.

    Equipped with advanced water-cooling technology, the TDE BSM50GD60DLC/CS8FA delivers exceptional thermal management capabilities, extending its lifespan and enhancing reliability. Its 20kHz switching frequency allows for smooth operation and minimizes electromagnetic interference, making it ideal for sensitive electronic systems.

    The compact size of 200mm x 150mm x 80mm ensures easy integration into existing systems without compromising on functionality. The F insulation class guarantees high levels of electrical insulation, protecting against short circuits and ensuring safe operation. Additionally, the Surface Mount Device (SMD) connection type facilitates simple assembly and maintenance.

    Backed by a MTBF rating of over 100,000 hours, our IGBT Module boasts exceptional reliability and durability, making it a cost-effective long-term investment for your automation projects. Trust in TDE’s commitment to quality and innovation for unparalleled performance in your industrial control needs.
