Number of Analog Inputs:8

Analog Input Type:Voltage and Current

Signal Range:±5/10V, 1-5V, ±20mA (0/4 to 20mA)

Resolution:16-bit

Sampling Time:55 ms

Common Point Voltage:50V

Isolation Voltage:Optically isolated

Environmental Conditions:Operating temperature range: -25°C to +60°C, Storage temperature range: -40°C to +85°C

Power Consumption:Typical: 25 mA @ 24V DC

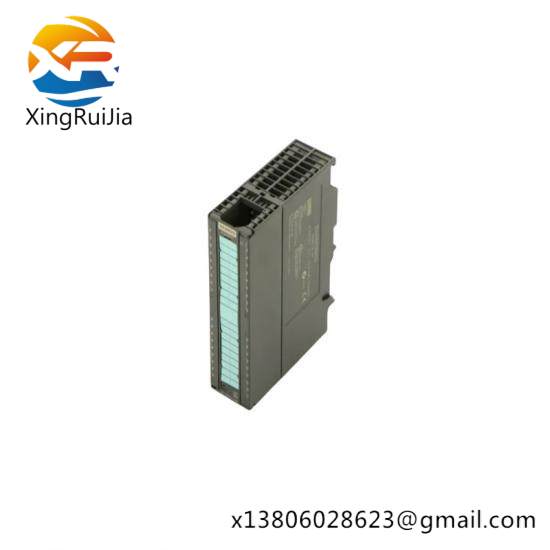

    Integrating advanced signal processing capabilities, the Siemens SIMATIC S7-300 Analog Input Module SM 331 – NF00 – 0AB0 is engineered to enhance the precision and reliability of industrial control systems. With its high-resolution 16-bit ADCs, this module ensures accurate measurement of voltage and current signals from sensors and transducers.

    Featuring optically isolated inputs, the module offers protection against electrical interference, making it suitable for applications in harsh industrial environments. The robust design withstands extreme temperatures, ensuring continuous operation under challenging conditions.

    The module supports various signal types including voltage, current, thermocouples, and resistance inputs, providing flexibility for integration with diverse sensor technologies. Its compatibility with Siemens’ comprehensive automation portfolio ensures seamless system integration and enhanced productivity.

    With a typical power consumption of 25 mA at 24V DC, the module operates efficiently, reducing energy costs and system complexity. Additionally, the built-in diagnostics feature provides real-time monitoring and alerts for potential issues, enabling proactive maintenance and minimizing downtime.

    For users seeking precise and reliable data acquisition in industrial control applications, the Siemens SIMATIC S7-300 Analog Input Module SM 331 – NF00 – 0AB0 is an optimal choice, offering unparalleled performance and durability.
