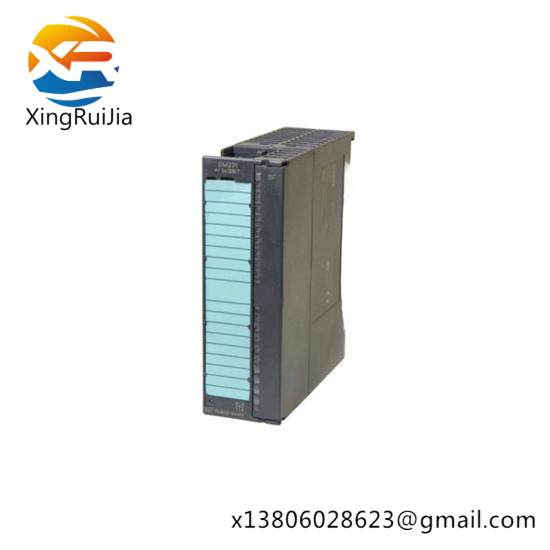

Model Number:6ES7331-7TB00-0AB0

Manufacturer:Siemens

Module Type:Analog Input

Module Series:SIMATIC S7-300

Channels:8

Signal Types:U/I/thermocouple/resistor

Resolution:9/12/14 bits

Isolation:Yes

Alarm Features:Yes

Diagnostics:Channel diagnostics included

Dimensions:Width x Depth x Height (mm)

:131 x 151 x 51

Weight:0.289 kg

Operating Temperature:-20°C to +60°C

Storage Temperature:-40°C to +70°C

    The Siemens 6ES7331-7TB00 Analog Input Module is engineered with precision to meet the stringent demands of industrial environments. Its advanced signal processing capabilities ensure reliable data transmission, even under challenging conditions.

    Each channel features a ±5/10V and 1-5V range, coupled with a versatile ±20mA (0/4 to 20mA) current input, making it suitable for a wide array of industrial sensors and devices.

    With a sampling speed of 55 milliseconds, this module ensures quick and accurate data acquisition, enhancing the responsiveness of control systems. The 16-bit resolution guarantees high precision in measurements, critical for maintaining optimal operational efficiency.

    The module’s robust design includes a common point voltage of 50V, providing additional isolation and protection against electrical disturbances. Its temperature range from -25°C to +60°C ensures reliable performance across various industrial settings.

    In terms of power consumption, each channel typically consumes less than 100mW, making it an energy-efficient solution for cost-effective operation. Additionally, the module supports Profinet communication interface for seamless integration with Siemens and third-party systems.

    For easy installation and maintenance, the Siemens 6ES7331-7TB00 is compatible with standard 35mm DIN rail mounting. Its metal casing and high-quality electronic components ensure durability and reliability, backed by comprehensive support services from Siemens.
