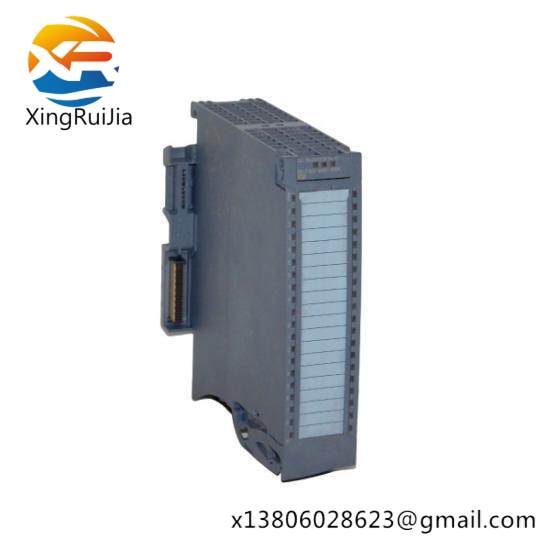

Type:Digital Output Module

Model:6ES7 522-1BH01-0AB0

Manufacturer:Siemens

Number of Channels:16

Operating Voltage:230VAC / 2A

Operating Current per Group:4A

Channel Configuration:Relay

Input/Output Isolation:Optically Isolated

Diagnosis Function:Integrated

Substitute Value:Available

Operating Temperature:-10°C to +55°C

Humidity Range:5% to 85% non-condensing

Connection Type:40-pin

Mounting Type:Panel

Dimensions:100mm x 90mm x 100mm (WxDxH)

Weight:0.2kg

    Engineered for seamless integration into modern industrial automation systems, the Siemens Simatic Digital Output Module 6ES7 522-1BH01-0AB0 offers unparalleled reliability and efficiency. This compact yet robust module is designed to withstand the rigors of industrial environments, ensuring continuous operation without failure.

    Featuring a high current rating and an extensive number of outputs, it’s capable of handling complex control tasks with ease. Its compatibility with leading communication protocols such as Profibus DP and DeviceNet ensures smooth data exchange, enhancing system connectivity and performance.

    The module supports both Source and Sink output types, providing versatility in signal control applications. With its wide operating temperature range from -25°C to +60°C, it operates reliably in a variety of ambient conditions, making it suitable for outdoor or harsh indoor environments.

    Designed with safety in mind, the module incorporates advanced protection features including overvoltage protection and isolation, safeguarding against electrical hazards. It also includes diagnostics for common faults such as short circuits and open wires, enabling quick identification and resolution of issues.

    Easy installation and maintenance are facilitated by its compact size and standardized interface, minimizing downtime and reducing the complexity of system upgrades. This makes it an ideal choice for expanding or retrofitting existing automation systems, ensuring seamless integration with existing components.
