Model Number:6ES7522-1BH10-0AA0

Manufacturer:SIEMENS

Output Channels:32

Channel Configuration:8 channels per group

Current Rating:0.5 A per group

Voltage Rating:24 V DC

Frequency Range:Up to 600 Hz

Diagnosis Functionality:Single-channel diagnostics for troubleshooting

EMI Compliance:Built-in EMI filter (230V 1 phase / 460V 3 phase)

Fieldbus Compatibility:Optional Fieldbus Modules (DeviceNet, Profibus, LonWorks, CANopen)

Power Supply:208;240 Volts AC

Current Draw:4.2 Amps

Net Weight:0.339 kg

Dimensions:14.90 x 15.30 x 4.30 cm

Additional Features:RFI-switch for mains, flexible DC BUS sharing, complete protection

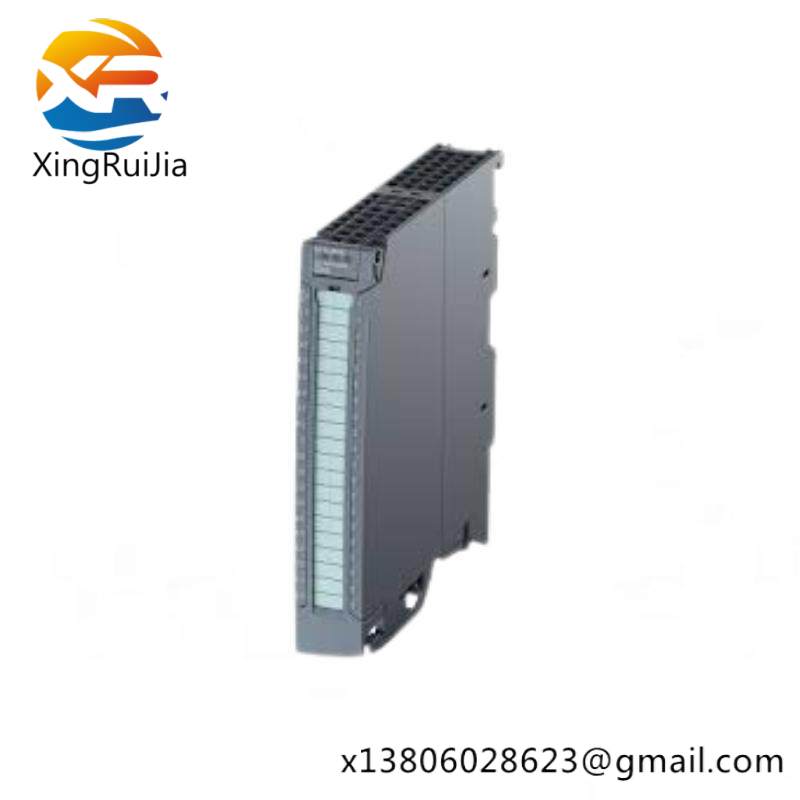

    The SIEMENS 6ES7522-1BH10-0AA0 Digital Output Module is a cutting-edge solution for industrial automation, featuring a modular and compact design optimized for high performance and efficiency.

    With its built-in PLC function and EMI filter, this module ensures reliable operation in environments subject to noise and interference, providing a robust foundation for your control systems.

    Each of the 16 channels is equipped to handle up to 24V DC at 0.5A, allowing for precise control over devices and processes. The single-channel diagnostics feature ensures quick identification and resolution of potential issues, enhancing system reliability.

    The module supports easy DC BUS sharing, enabling flexible integration within complex systems. Its compatibility with SIMATIC S7-1500 ensures seamless operation alongside other Siemens components, creating a cohesive and powerful control ecosystem.

    Featuring a front connector option, either screw terminals or push-in style, this module offers a versatile connection method suitable for various installation scenarios. Additionally, its complete protection measures safeguard against short-circuits, wire breaks, and supply voltage fluctuations, ensuring a long and trouble-free service life.
