Model Type:S7-200 PLC

Model Number:6ES7231-0HF22-0XA0

Manufacturer:SIEMENS

Number of Inputs:8

Input Range:0-10V DC, max 2 AI 0..20 mA

Conversion Resolution:12/11-bit

EMI Filtering:Yes, 230V 1 phase / 460V 3 phase

RFI Switch:Yes

Sharing Capability:DC BUS sharing

Extension Options:Flexible, complete protection

Nominal Input Voltage:208;240 Volts AC

Current Rating:4.2 Amps Max

Frequency:0.1~600Hz

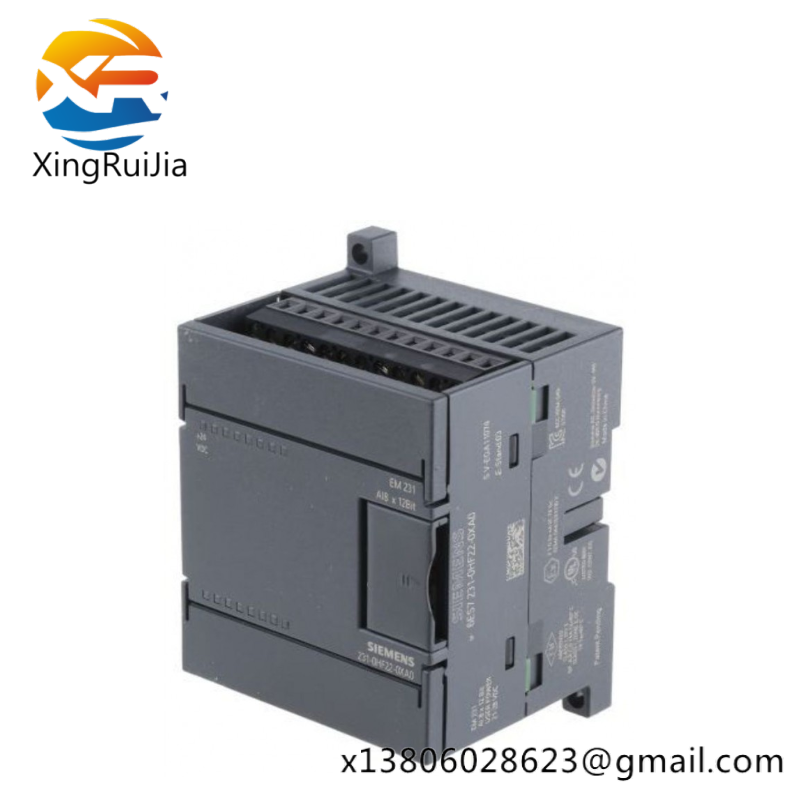

    The SIEMENS 6ES7231-0HF22-0XA0 Analog Input Module is specifically designed for seamless integration into SIMATIC S7-200 PLC systems, providing a robust solution for real-time data acquisition. This module supports a versatile range of signal types, making it adaptable to various industrial processes and control scenarios.

    Featuring a compact modular design, this Analog Input Module ensures efficient space utilization and easy installation within your existing system architecture. It is engineered to handle a wide array of input signals, including 0-10V DC and 0..20mA currents, ensuring high accuracy and reliability in data acquisition.

    The inclusion of an internal EMI filter significantly enhances the module’s immunity against electrical noise, guaranteeing stable performance even in environments with fluctuating electrical conditions. This feature is particularly beneficial in industries where environmental noise can impact system performance.

    The 12/11-bit conversion resolution offers a balance between processing speed and precision, allowing for fast yet accurate conversion of analog signals into digital form. This capability is crucial for real-time data processing and decision-making in industrial automation.

    With compatibility specifically tailored for the S7-22X CPU series, this Analog Input Module ensures optimal performance and compatibility with other components of your PLC system. Its seamless integration capabilities make it an ideal choice for enhancing the efficiency and reliability of your industrial control systems.
