Model Type:Compact CPU

Model Number:6ES7214-1BD22-OXBO

Manufacturer:SIEMENS

Dimensions:10.20 x 13.60 x 7.00 cm

Weight:0.411 kg

Power Supply:AC

Input/Output:14 DI DC/10 DO Relay, 8/12 KB Program/8 KB Data

Profibus DP:Extendable

Programmable Interface:2 PPI/User-programmable

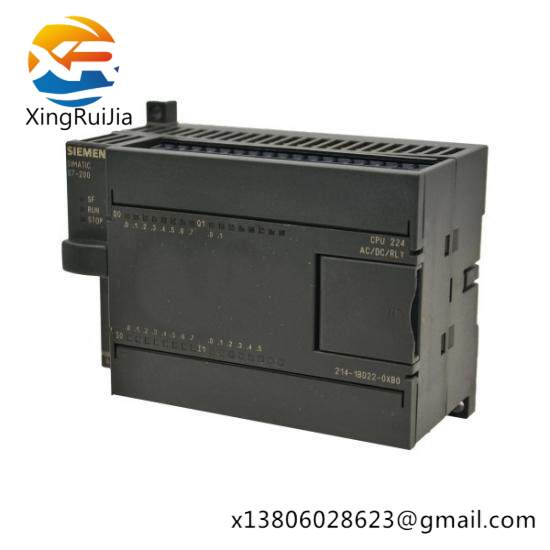

    The SIEMENS 6ES7214-1BD22-OXBO S7-200 CPU 224 is a high-performance control module tailored for small-scale industrial settings. This compact unit ensures efficient operation and minimal space consumption, making it an ideal choice for various automation tasks.

    Featuring a robust design with a compact footprint, the CPU 224 supports both AC power supply and offers a versatile range of inputs and outputs. With 14 digital inputs (DI) and 10 relay outputs (DO), this module provides ample connectivity for controlling devices and sensors.

    With 8 kilobytes of program memory and 8 kilobytes of data memory, the CPU 224 ensures sufficient storage for programming and data handling, supporting the development of complex control algorithms. Its compatibility with PROFIBUS DP enables seamless integration into larger automation networks.

    Equipped with two programmable interfaces (PPI), the module facilitates direct communication with peripheral devices and allows for user-programmable functionality, enhancing its adaptability and flexibility. The built-in capabilities make it suitable for a broad spectrum of applications, from simple control scenarios to more intricate system configurations.

    Built for reliability and ease of use, the SIEMENS 6ES7214-1BD22-OXBO S7-200 CPU 224 is designed to withstand harsh industrial environments while ensuring seamless integration into existing automation setups. Its intuitive programming and maintenance features contribute to streamlined system management and enhanced operational efficiency.
