Power Supply Voltage:DC 24V

Number of Outputs:8

Output Current per Channel:0.5A

Switching Speed:Instantaneous

Operating Temperature Range:-25°C to +60°C

Storage Temperature Range:-40°C to +85°C

Protection Class:IP20

Dimensions (WxHxD):120mm x 90mm x 110mm

Weight:0.2kg

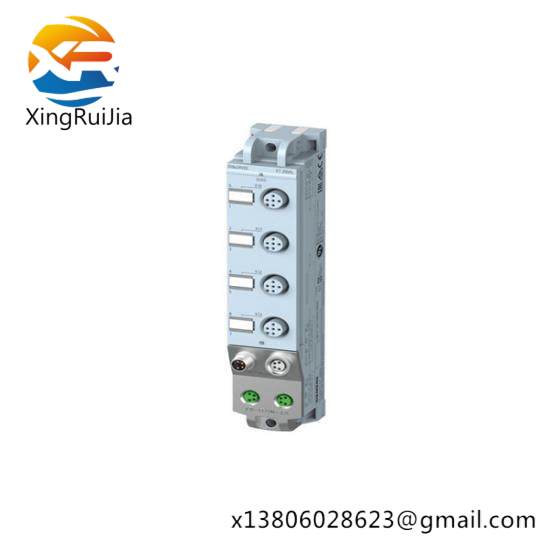

    The SIEMENS 6ES7142-5AF00-0BA0 Digital Output Module is designed for seamless integration into complex industrial control systems, ensuring reliable and efficient operation. Its modular and compact design facilitates easy installation and scalability, making it suitable for a wide range of applications within the manufacturing industry.

    Featuring 8 source output channels with a PNP configuration and a current rating of 0.5A at 24V DC, this module provides precise control over actuators, relays, or other load devices. The high-speed response time ensures that critical processes are managed efficiently without delays, contributing to overall productivity and safety.

    With built-in PLC functionality, users can leverage the module’s capabilities for more complex control scenarios, including conditional logic and sequence operations. The inclusion of an EMI filter and an RFI switch for mains protection ensures electromagnetic compatibility and robustness against electrical disturbances, safeguarding the system’s integrity.

    The optional fieldbus modules support various communication protocols, enhancing interoperability with other equipment in the plant. This feature enables seamless data exchange and control across different systems, facilitating a cohesive automation environment. The flexibility in DC bus sharing allows for efficient power management, optimizing energy usage within the industrial setting.

    The 6ES7142-5AF00-0BA0 Digital Output Module comes equipped with diagnostics for common faults, such as short-circuits, wire breaks, and supply voltage issues. This proactive monitoring helps in timely identification and resolution of potential problems, minimizing downtime and maintenance costs. The active lifecycle status signifies ongoing development and support, ensuring users benefit from the latest advancements and enhancements.
