Number of Channels:8

Operating Voltage:24V DC

Maximum Current per Channel:2A

Switching Speed:10 kHz

Connection Type:Source Output (PNP)

Module Type:SIMATIC ET200S

Compatibility:ET200SP

Diagnostics:Short-circuit to L+, Ground, Supply Voltage

Dimensions:83mm x 91mm x 63mm

Net Weight:0.077 lb

Data Transfer Rate:Up to 12 Mbit/s

Number of Modules Per Packing Unit:1

Colour Code:CC02

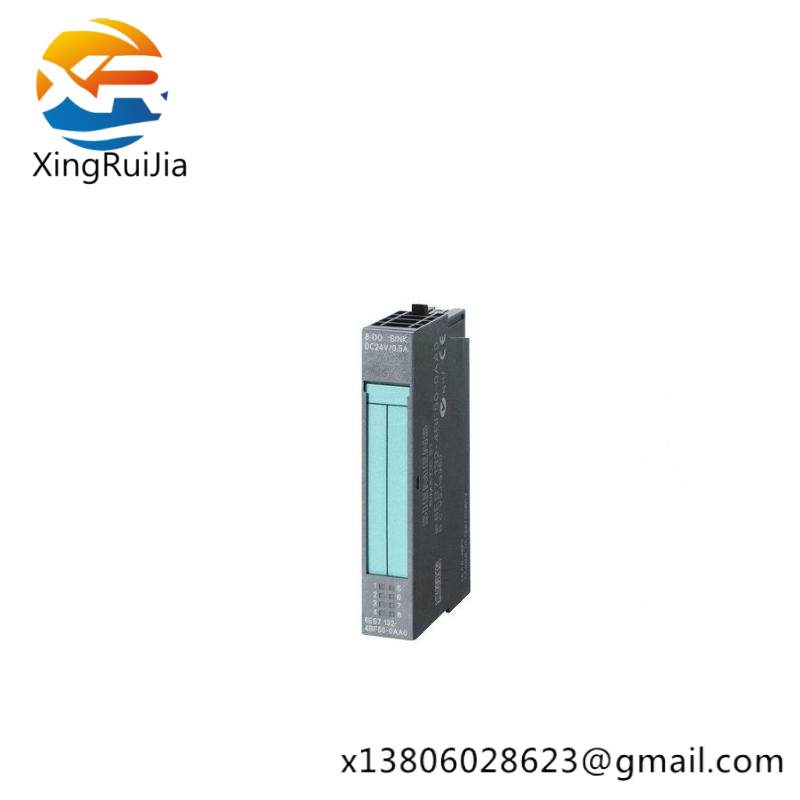

    This high-performance digital output module from SIEMENS is specifically engineered for the SIMATIC ET200S platform, providing seamless integration into a wide range of industrial automation applications. Its robust design ensures reliability and efficiency, making it a preferred choice for control systems requiring precise switching capabilities.

    Featuring 8 channels capable of handling 24V DC at 0.5A, this module supports source output switching, enabling direct connection to loads without additional components. The PNP configuration facilitates straightforward implementation in various circuit configurations, enhancing flexibility in system design.

    With dimensions of 85mm x 127mm x 69mm and weighing just 0.167 kg, the module offers compactness and ease of installation, making it suitable for both new installations and retrofits. The SIMATIC DP interface ensures high-speed communication, enabling efficient data exchange between the module and the control system.

    The module’s compatibility with up to 63 modules through the bus connection significantly boosts scalability, allowing for the expansion of the control system without compromising performance. This feature makes it an ideal solution for large-scale automation projects where multiple output modules are required.

    Furthermore, the inclusion of advanced diagnostics for short-circuit to L+, ground, and wire breaks ensures proactive maintenance and minimizes downtime. The comprehensive set of specifications combined with SIEMENS’ renowned quality and reliability makes this digital output module a cornerstone for modern industrial automation systems.
