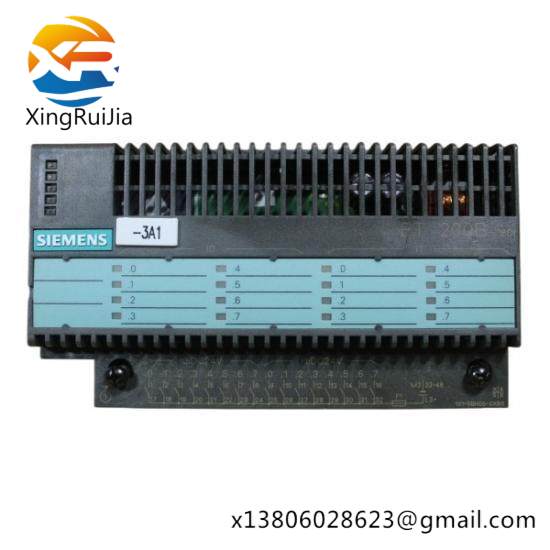

Manufacturer:SIEMENS

Model Number:6ES7131-0BH00-0XB0

Module Type:Digital Input Module

Channels:16 DI

Power Supply Voltage:24V DC

Current Consumption:Max. 25 mA per channel

Input Type:Type 3 (IEC 61131)

Supply Voltage Range:DC 12V to 48V

Input Delay Time:0.05..20 ms

Channel Diagnostics:Encoder power supply short circuit, wire break, supply voltage, channel fault LED

Enclosure Protection:IP20

Operating Temperature:-10°C to +55°C

Storage Temperature:-40°C to +85°C

Dimensions:99mm x 167mm x 61mm

Weight:0.228 kg

    The SIEMENS 6ES7131-0BH00-0XB0 is engineered to optimize industrial automation processes by providing precise control over 16 digital inputs, each designed to handle 24V DC signals, ensuring reliability and efficiency in diverse manufacturing environments.

    Featuring a compact and modular design, this module seamlessly integrates into the existing SIMATIC ET 200B system, enhancing its capability to monitor and control industrial machinery and processes efficiently.

    With its built-in PLC function and EMI filter, the 6ES7131-0BH00-0XB0 ensures robust performance and compatibility across various electrical systems, including single-phase and three-phase supplies, ensuring uninterrupted operation under diverse conditions.

    The module supports advanced diagnostics, including channel diagnostics for encoder power supply, short circuit, wire break, supply voltage, and channel faults, providing real-time insights into system health and enabling proactive maintenance.

    Equipped with an RFI-switch for mains, this digital input module ensures protection against electromagnetic interference, safeguarding critical data and operations in noisy industrial environments.

    This product comes with complete protection standards, making it suitable for a wide range of applications where reliability and precision are paramount. Its versatile connectivity options and compatibility with leading fieldbus protocols make it an indispensable component in modern industrial automation ecosystems.
