Model Type:Other

Module Type:Digital Output

Number of Channels:8

Operating Voltage:24V DC

Current Rating:0.5A

Switching Mode:Source Output (PNP)

Switching Capacity:24V DC/0.5A

Standard Compliance:IEC 61131-2

Load Protection:Short-Circuit to L+ and Ground

Supply Voltage Monitoring:Wire Break, Supply Voltage

Diagnostic Function:Module Diagnostics

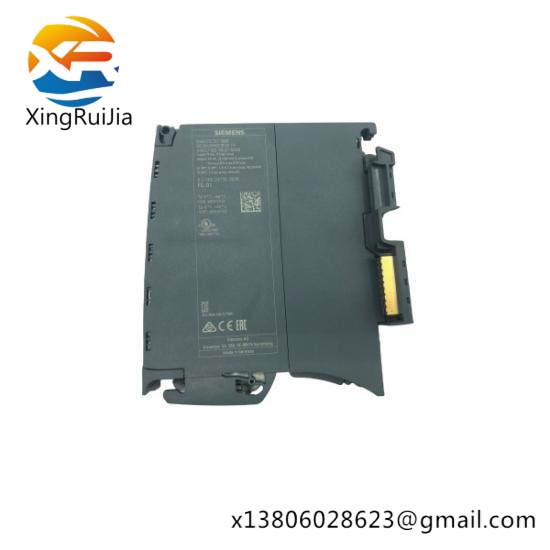

    The Siemens 6ES7 522-1BL01-0AB0 Digital Output Module is engineered for seamless integration into complex industrial control systems, ensuring consistent performance under demanding conditions.

    Featuring 16 channels capable of delivering 24V DC at a current rating of 0.5A per channel, this module offers a robust solution for controlling actuators, solenoids, and other devices requiring precise digital output.

    The source output configuration (PNP) ensures compatibility with a wide range of industrial equipment, providing reliable signal transmission for efficient system operation.

    The module includes advanced diagnostics for short-circuit protection, wire breaks, and supply voltage monitoring, enhancing system safety and maintenance efficiency.

    Designed for active lifecycle status, the 6ES7 522-1BL01-0AB0 is a long-lasting addition to any automation project, backed by Siemens’ commitment to quality and reliability.
