Product Lifecycle (PLM):PM300: Active

Net Weight (kg):0.339 Kg

Packaging Dimension:14.90 x 15.30 x 4.30 cm

Model Type:SIMATIC S7-1500

Model Number:6ES7522-1BL01-0AB0

Manufacturer:SIEMENS

Additional Information:HF digital output module with 32×24 V DC/0.5 A HF; 32 channels in groups of 8; 4 A per group; Single-channel diagnostics; Substitute value: Front connector (screw terminals or push-in) to be ordered separately

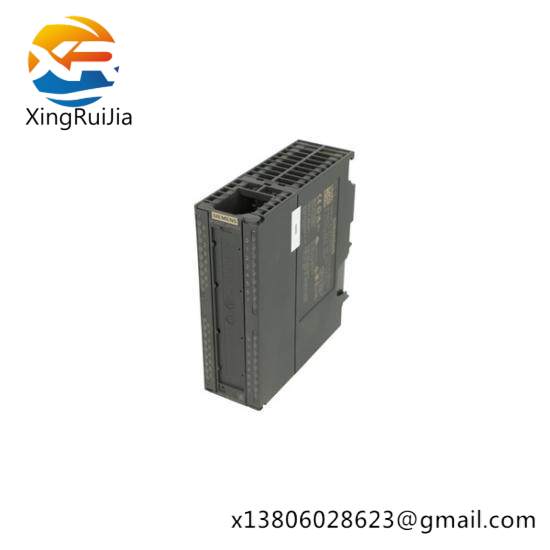

    The Siemens 6ES7 322-1BL00-0AA0 is a premium digital output module that boasts exceptional reliability and robustness for demanding industrial environments. Its optical isolation ensures enhanced signal integrity and prevents interference from other electrical signals, making it ideal for sensitive control applications.

    Featuring a compact design, this module is compatible with a wide range of Siemens S7-300 PLC systems, simplifying integration into existing automation setups. The 16-channel configuration allows for versatile setup, catering to various output requirements without compromising on performance.

    With its DC 24V power supply and operating current up to 2.0A per channel, this module can handle a variety of load types, including relay loads, making it suitable for control systems across different industries. The high-quality relay outputs ensure stable and reliable operation under varying conditions.

    Engineered for efficiency and durability, the 6ES7 322-1BL00-0AA0 has an extended temperature range (-25°C to +60°C) that guarantees reliable performance in diverse industrial settings, from cold storage facilities to hot manufacturing environments.

    For ease of use, the module comes with detailed documentation and intuitive programming interfaces, allowing users to quickly configure and troubleshoot issues. Additionally, its small size and lightweight design facilitate easy installation and maintenance, enhancing operational efficiency in the plant floor.
