Operating Temperature:-25°C to +70°C

Relay Type:SDM/CDM

Number of Relays:16

Termination Type:Marshalled

Input Voltage Range:DC 24V

Output Rating:Contact Rating: 10A @ 250VAC, 10A @ 30VDC

Environmental Compliance:IEC 61010-1 Safety Certified

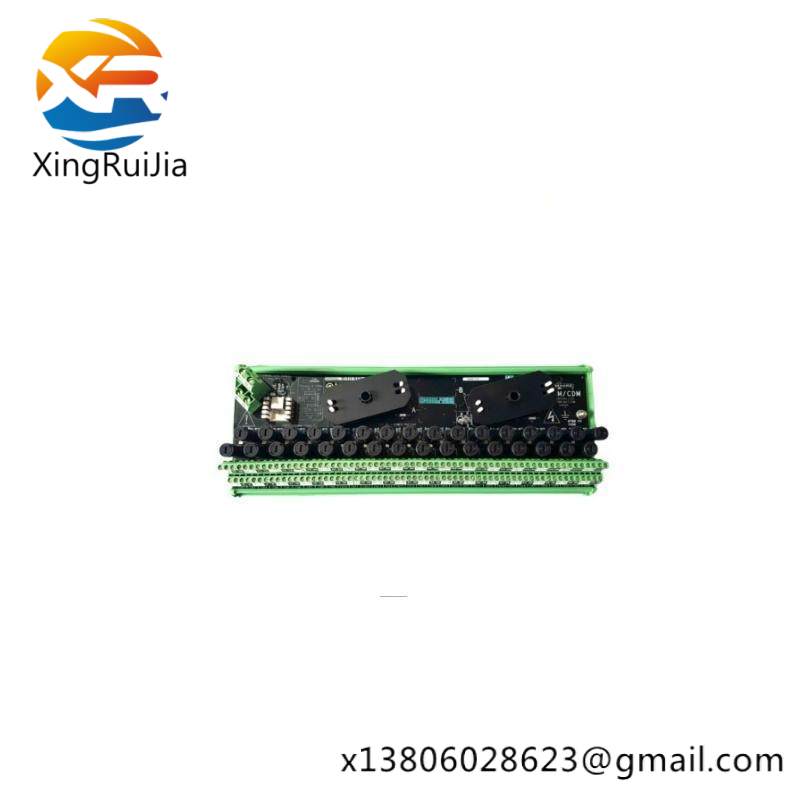

    The SIEMENS 16436-1-03 module is engineered for seamless integration into complex industrial automation systems, providing reliable relay functionality for critical control applications. Its marshalled termination style ensures a compact layout while enhancing the system’s reliability through optimized signal routing.

    Each relay within the module is meticulously designed to handle up to 10A at both 240V AC and 250V DC, ensuring robust performance under demanding conditions. The SPDT (Single Pole, Double Throw) configuration offers versatility in switch configurations, facilitating versatile control scenarios in automation processes.

    The module is built for durability and versatility, featuring IP20 protection against dust and splashes, making it suitable for a wide range of industrial settings. It operates efficiently within a temperature range from -20°C to +60°C, ensuring reliable performance throughout the year in various climates.

    In terms of installation, the panel mounting design allows for easy integration onto control panels, minimizing the space footprint on the factory floor. This not only enhances the aesthetic appeal of the control environment but also optimizes the use of valuable workspace.

    The lightweight construction of the module (45g) facilitates its deployment in mobile or portable applications, further expanding its utility across diverse industrial sectors. Whether in manufacturing plants, power distribution centers, or any other industrial setting requiring precise and reliable control mechanisms, the SIEMENS 16436-1-03 module delivers exceptional performance.
