Maximum Continuous Current (Isc):75 A

Peak Current (Ip):150 A

Rated Voltage (Vd):600 V

Thermal Resistance (α):0.018 K/W

Switching Frequency:up to 20 kHz

Operating Temperature Range:-40°C to +125°C

Package Type:120mm x 75mm

Cooling Method:Thermal Pad and External Heat Sink

Di/dt and dv/dt Rating:Up to 20 kA/μs and 500 V/μs

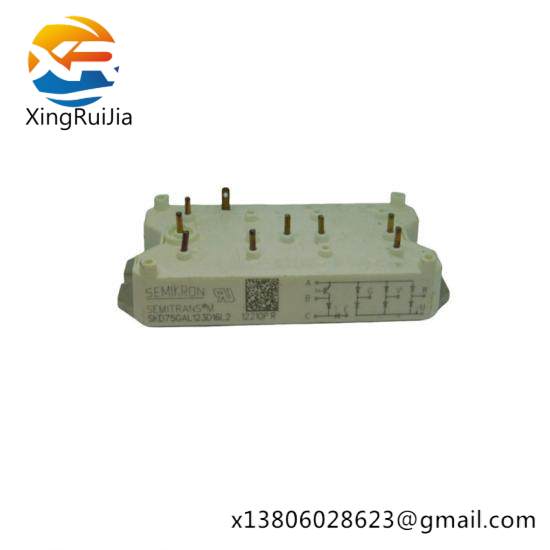

    Semikron’s SKD75GAL123D16L2 IGBT Module is engineered to withstand demanding conditions with unparalleled reliability, ensuring consistent performance in critical power management systems.

    With its robust design, this module offers high switching frequency capabilities, enabling efficient operation in modern industrial applications, from renewable energy to electric vehicles.

    Featuring an advanced water cooling system, the SKD75GAL123D16L2 ensures optimal thermal management, maximizing system uptime and reducing maintenance costs.

    Compliant with industry-leading safety standards, including CE, UL, and VDE certifications, it provides peace of mind for users seeking high-quality, safe solutions for their power control needs.

    Engineered for flexibility, this IGBT module can be easily integrated into existing systems, facilitating a seamless upgrade path for customers looking to enhance their power management capabilities without significant redesign efforts.
