Communication Protocol:ControlNet

Operating Voltage:12 to 24 V DC

Power Consumption:Maximum 150 mW

Data Rate:Up to 1 MB/s

Network Capacity:Up to 64 nodes

Connector Type:M12 x 0.8 mm pitch

Dimensions (WxHxD):2.44 x 3.15 x 1.26 inches

Weight:0.46 lbs

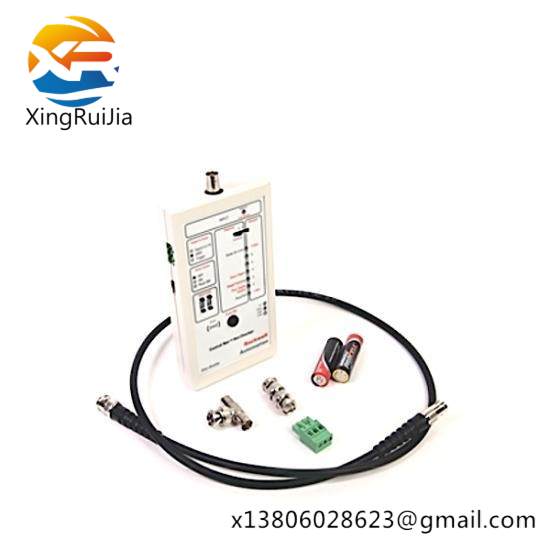

    The Allen-Bradley 1788-CNCHKR ControlNet module is a cornerstone in industrial automation, offering unparalleled performance and reliability for complex system integration. Its robust design ensures compatibility across a wide range of devices, making it an indispensable tool for optimizing manufacturing processes.

    Featuring 16 inputs and 16 outputs, this module supports efficient data exchange at a staggering 10 Mbps data rate, ensuring real-time communication and responsiveness in industrial environments. It is equipped with advanced error detection and correction mechanisms, guaranteeing a fault-tolerant operation.

    With an operating temperature range from -20°C to +60°C, the 1788-CNCHKR ControlNet module is engineered to withstand extreme environmental conditions, providing consistent performance in various industrial settings. Its low power consumption makes it energy-efficient, contributing to sustainable operation costs.

    Designed with user-friendliness in mind, the module’s compact size and lightweight construction facilitate easy installation and maintenance. It is compatible with Allen-Bradley’s comprehensive range of automation products, allowing for seamless integration into existing systems without compromising on functionality.

    For users seeking to enhance productivity, reduce downtime, and streamline their operations, the Allen-Bradley 1788-CNCHKR ControlNet module offers a cost-effective solution that delivers exceptional value. Its compatibility with industry-standard protocols ensures seamless interoperability, fostering a collaborative ecosystem for innovative industrial solutions.
