I/O Size:0/120/240 – 16 bit integers

Communication Parameters:Baud Rate: 110 to 115K baud, Stop Bits: 1 or 2, Data size: 7 or 8 bits, Parity: None, Even, Odd, RTS Timing delays: 0 to 65535 milliseconds

Floating Point Data:Supported, configurable for Enron, Daniel® and other implementations

Protocol Interface:Modbus Master/Slave

Emulation Capability:Configurable for individual application ports

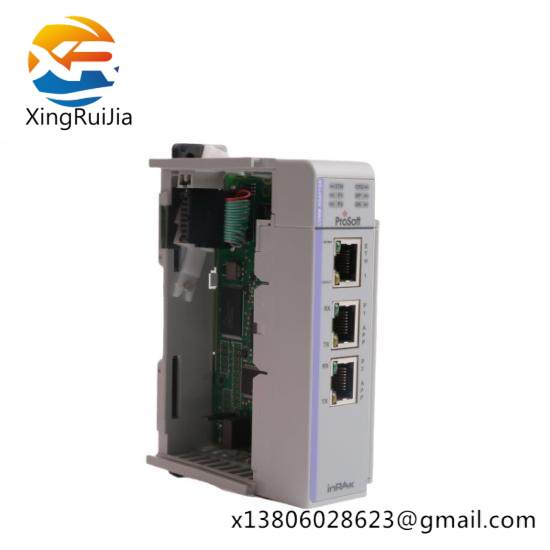

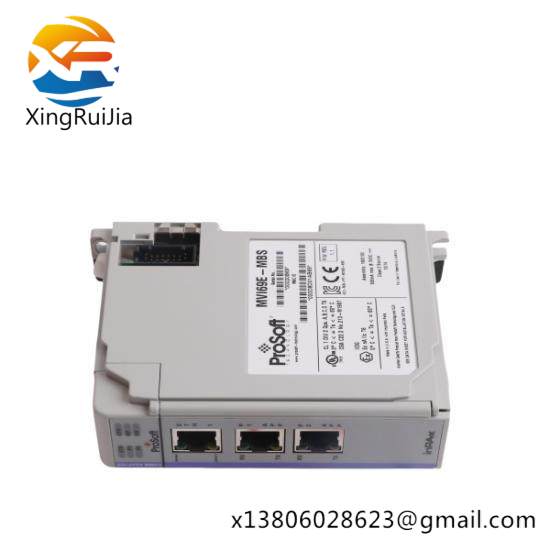

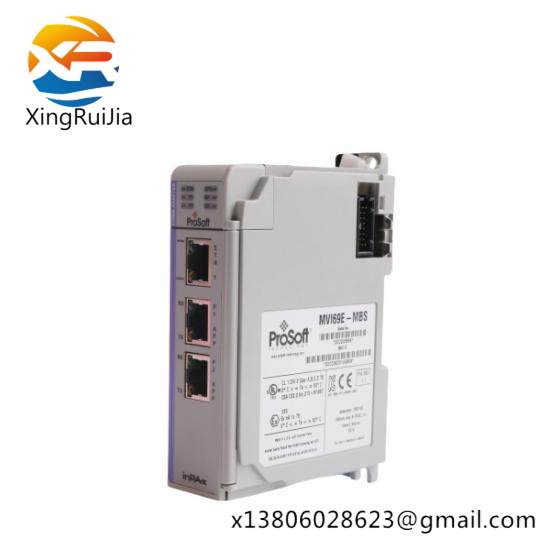

    Engineered for seamless integration, the Prosoft Technology MVI69E-MBS Modbus Serial Enhanced Communication Module is designed to elevate the performance of your industrial automation systems. This module leverages the robustness of the Modbus serial protocol to facilitate efficient data communication with CompactLogix processors, ensuring unparalleled system responsiveness and reliability.

    With its versatile configuration options, the MVI69E-MBS supports an array of data sizes, including 0, 120, and 240 channels of 16-bit integers, providing flexibility to cater to diverse operational needs. Whether you’re looking to optimize data transmission speed or ensure precise control over your processes, this module delivers.

    The inclusion of floating point data movement capabilities ensures compatibility with various industry-standard implementations, such as Enron and Daniel®, offering enhanced precision in data handling. This feature is particularly beneficial for applications requiring high accuracy in calculations and measurements.

    Featuring a modular design, the MVI69E-MBS is compatible with a range of CompactLogix processors, making it a versatile choice for a multitude of automation setups. Its compatibility with the 1769 I/O bus capability version 16 and greater, excluding MicroLogix 1500, ensures broad applicability across different industrial environments.

    Diagnostic data availability within the RSLogix 5000 controller tags empowers users to monitor the health of their network interfaces, facilitating proactive maintenance and optimization. This functionality is crucial for maintaining high system uptime and minimizing downtime due to unforeseen issues.
