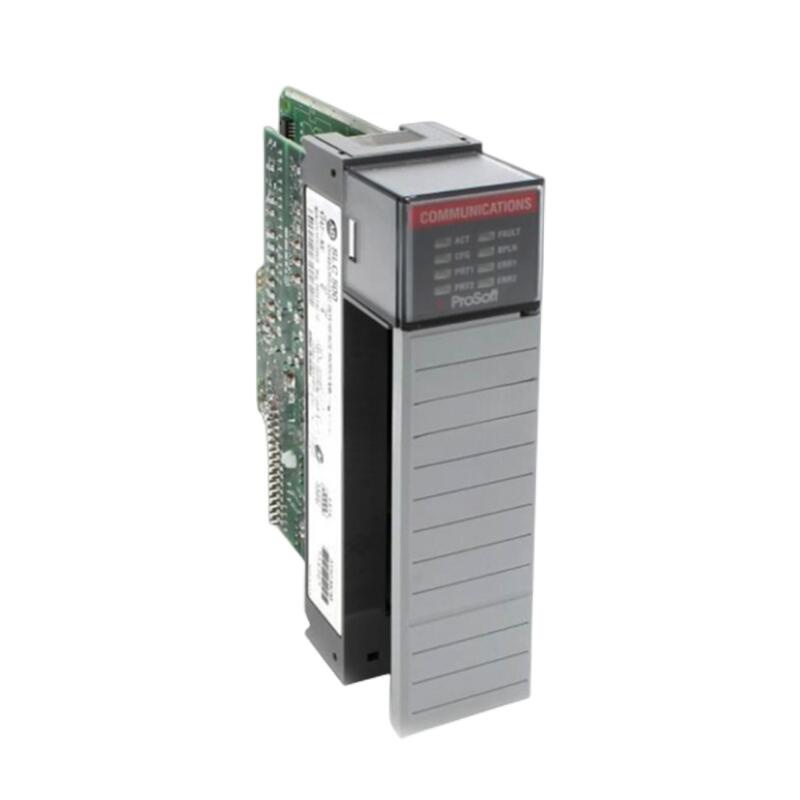

PROSOFT MVI94-GSC-E

The MVI94-GSC-E is part of ProSoft’s GSC (Generic Serial Communication) family. It is a general-purpose serial communication interface that supports standard ASCII protocols, enabling connectivity with a wide range of industrial devices such as PLCs, sensors, actuators, robots, and more.

___________________________________________________________________________________________________________________________

Core Functions:

• Facilitates data transfer between Allen‑Bradley PLCs and external devices
• Supports multiple serial protocols (e.g., Modbus, DNP3, SLC)

Typical Applications:

Ideal for integrating devices from different manufacturers or with different protocols into an Allen‑Bradley system

___________________________________________________________________________________________________________________________

2. Key Specifications

Communication Protocol:

– Supports ASCII serial communication

– Some models (e.g., GSCXT) can support binary protocols via firmware upgrade

Connection:

– Typically connects via RS‑232 / RS‑485 interfaces (depending on the specific module version)

Control Method:

– Data read/write using DINT (double word) orSINT (single word) data types

– Or via Message instructions

Power:

– Operating voltage range: typically 12V – 24V DC

___________________________________________________________________________________________________________________________

3. Product Features

High Reliability:

– Industrial‑grade design suitable for harsh factory floor environments

Multi-Protocol Support:

– Native ASCII communication

– Some models supportModbus Master/Slave for direct communication with Modbus devices

Flexible Data Handling:

– Direct data mapping to PLC memory

– Custom message frames for implementing complex communication logic

Strong Compatibility:

– Seamless integration with multiple Allen‑Bradley platforms, including ControlLogix, CompactLogix, MicroLogix

___________________________________________________________________________________________________________________________

4. Structure and Components

The module features a single‑slot design, plugging directly into the PLC backplane.

Hardware:

– Serial communication interface circuitry (RS‑232/RS‑485)

– Power management module

– Microprocessor

Software:

– Internal firmware for ASCII protocol parsing

– Configuration via ProSoft’s Discovery Service tool (for baud rate, parity, data bits, etc.)

__________________________________________________________________________________________________________________________________

5. Application Areas

– Process Control: Connect field instruments (pressure gauges, flow meters, etc.) for data acquisition

– Robot Integration: Communicate with industrial robot controllers for coordinated operation

– Energy Management: Interface with variable frequency drives (VFDs), PLCs, and host systems for energy monitoring and control

– General Serial Communication: Serve as a bridge between Allen‑Bradley PLCs and various third‑party devices

————————————————————————————————-
