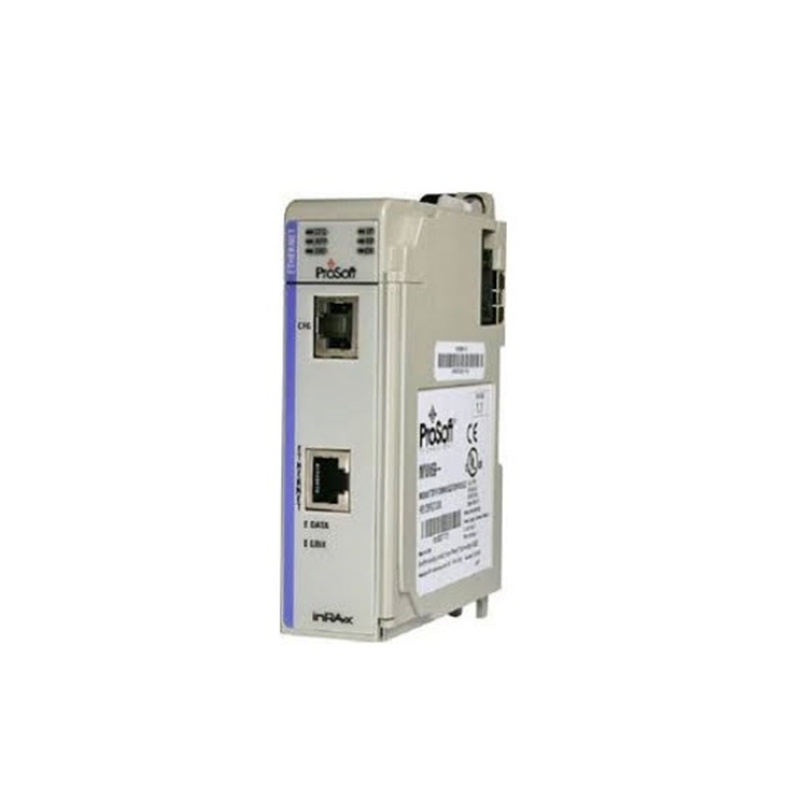

PROSOFT MVI69E-MBS Enhanced Communication Module

The ProSoft MVI69E-MBS is a high-performance enhanced serial communication module designed specifically for the CompactLogix™ platform. It enables fast, reliable data exchange between Modbus serial devices (such as sensors, actuators, and meters) and PLC systems, streamlining industrial connectivity workflows.

PROSOFT MVI69E-MBS

Overview

Specifications & Technical Parameters

Supply Voltage: 24V DC (allowable range: 18–32V DC), maximum current draw: 500mA
Operating Temperature: -20°C to 70°C (note: some documentation references an extended range of -40°C to 70°C)
Storage Temperature: -40°C to 85°C
Protection Rating: IP20
Interface TypesPhysical Dimensions: Approx. 13.2 cm × 5.25 cm × 11.48 cm
- Serial Ports: Two DB-9 ports (Port 1 and Port 2), supporting RS-232/RS-485/RS-422 communication protocols
- Ethernet Port: One RJ45 interface, dedicated to EtherNet/IP communication and module configuration

Key Product Features

Dual Serial Ports for Enhanced Scalability

Equipped with two serial ports supporting both master and slave connections, the module can handle multiple Modbus devices simultaneously, significantly boosting system expandability for complex industrial setups.

Advanced Communication Capabilities

Multi-Protocol Compatibility: Supports Modbus RTU, ASCII, and other serial communication protocols, ensuring seamless integration with a wide range of industrial equipment.
High-Speed Data Transmission: Leverages advanced communication technologies and optimized algorithms to minimize latency and transmission errors, enhancing real-time data exchange performance.

Easy Integration & Maintenance

Compact Design: Features a standard module footprint, enabling straightforward installation into existing PLC racks without additional modifications.
Built-In Diagnostic Tools: Equipped with fault diagnosis and status indicator LEDs, simplifying troubleshooting and maintenance procedures to reduce system downtime.

Standard Accessories

Adapter Cable: RJ45 to DB9 male adapter cable, used to connect the module’s serial ports to field devices.
Terminal Block Adapter: DB9 female to 9-pin screw terminal adapter, designed for RS-422/RS-485 connections to Port 1 and Port 2.

Typical Application Areas

Factory Automation: Connects Modbus-compatible PLCs, sensors, and actuators to enable fully automated production line control.
Building Automation: Integrates Modbus devices for centralized management of HVAC systems, lighting controls, and energy consumption monitoring.
Power Systems: Monitors key electrical parameters (current, voltage, power) to support remote monitoring and protection of power equipment.
Water Treatment & Transportation: Facilitates process control for water treatment facilities and automated management of transportation systems.

————————————————————————————————-
