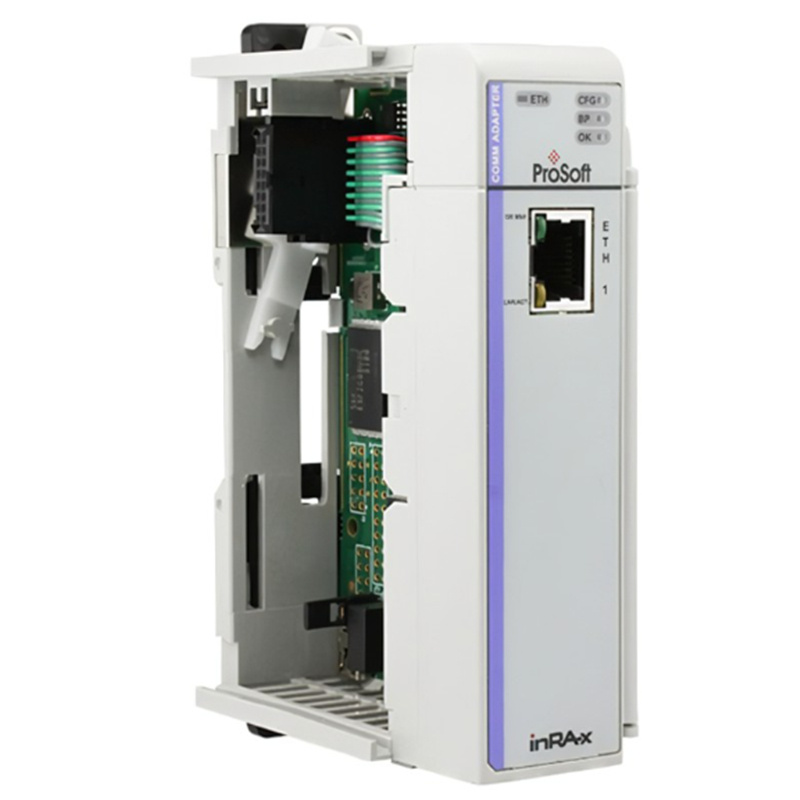

PROSOFT MVI69-PDPS

Product Overview

Specifications

• Communication Protocols: Profibus DP, Profibus DPV1
• PLC Platform Compatibility: Rockwell Automation CompactLogix (1769) and MicroLogix (1768) platforms
• I/O Capacity: Supports cyclic transmission of 200 Words of I/O data
• Power Supply & ConsumptionPhysical Dimensions: Standard 1769 single-slot module size
  • Power Consumption: Maximum 0.75 W
  • Backplane Current: 800 mA (80 W)
  • Supply Voltage: 48 VDC (powered via backplane)
• Certification: Equipped with PROFIBUS PNO certification (issued by Profibus & Profinet International, Germany)

Key Features

• Cross-platform Compatibility: Compatible with RSLogix 5000 (ControlLogix) and RSLogix 500 (MicroLogix) platforms
• Flexible Data Exchange: Supports data transmission via Ladder Logic
• High-speed Communication: Complies with Profibus DPV1 protocol, with Non-cyclic Message (NRT) and Non-cyclic Read/Write (NRT) capabilities
• Field-friendly Design: Integrated with LED status indicators and supports backplane diagnostics
• Configuration Storage: Communication configuration data can be stored in the module’s internal memory

Structure & Components

• Configuration Port: Used for parameter configuration of the module via PC software (e.g., RSLogix 5000)
• LED Indicators: Display module status, power status, port activity and other key information
• Physical Interfaces: Equipped with a 2.5mm M12 connector (for connecting to Profibus DP bus) and a standard 1769 backplane slot

Application Areas

• Industrial Automation Control: Such as packaging machinery, production line automation and other scenarios
• Process Control Systems: Systems requiring communication with process control instruments (e.g., transmitters, control valves)
• Field Device Integration: Integrating Rockwell PLCs with field devices from other brands (e.g., Siemens, Schneider Profibus devices)
