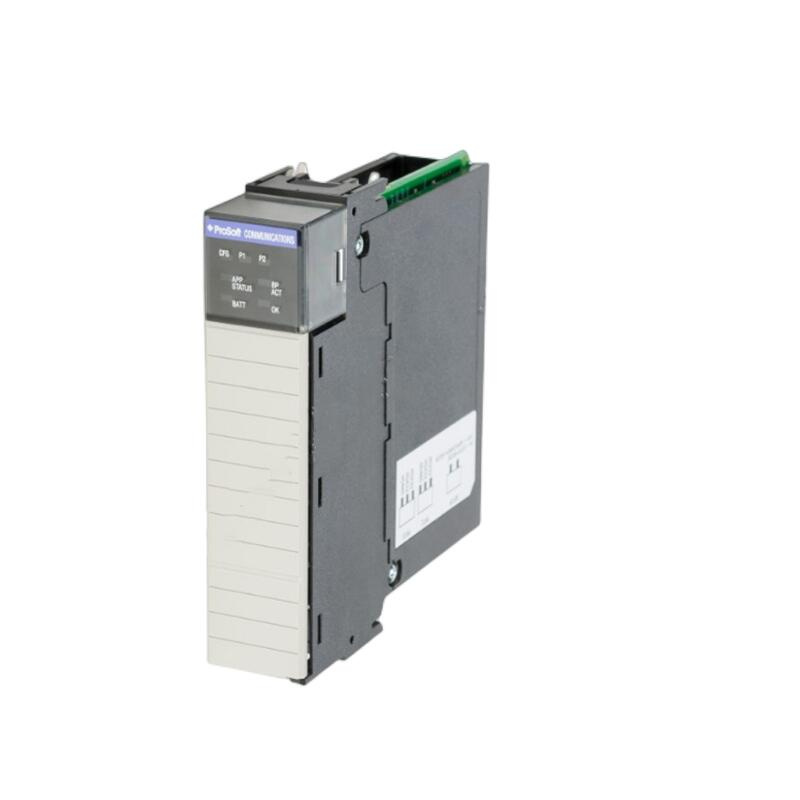

ProSoft MVI56E-SIE

The ProSoft MVI56E-SIE is an industrial Ethernet client communication module designed for installation on ControlLogix controllers’ backplanes. Its primary function is to enable the ControlLogix controller to operate as an Ethernet client, seamlessly connecting to up to 20 PLCs, including S7-200, S7-300, S7-400, S7-1200, and S7-1500 models running in server mode.

Core Parameters

• Communication: 10/100 Mbps with Auto MDI-X (no crossover cables required).
• Connection Capacity: Supports connections to up to 20 PLCs.
• Memory: Features approximately 5,000 16-bit registers for user-defined I/O data mapping.
• Interface: Standard RJ45 Ethernet port.
• Power: Powered via the 1756 ControlLogix backplane (approx. 800 mA current draw).

Product Features

• ProSoft Configuration Builder (PCB): A Windows-based graphical tool for configuring networks and data mapping without programming.
• CIPconnect Support: Allows network configuration and diagnostics through ControlLogix Ethernet modules (1756-ENxT/CNB), simplifying commissioning.
• Easy Replacement: Configuration is stored on a built-in Compact Flash (CF) card; replacing the module on-site requires only swapping the CF card for quick restoration.
• Diagnostic Display: A 4-character scrolling LED provides real-time communication status, fault codes, and alarm messages for easy troubleshooting.
• Flexible Data Handling: Supports user-defined mapping of up to 5,000 registers to meet diverse automation needs.

Structure and Components

• Main Control Unit: Processes Ethernet protocols and manages communications.
• Ethernet Interface: RJ45 port for connecting to PLC Ethernet ports.
• CF Card Slot: Stores the module’s network configuration and parameters.
• LED Display Panel: Shows real-time module status and error information.

Application Areas
The MVI56E-SIE is ideal for:

• Cross-Brand Integration: Enables ControlLogix controllers to communicate with Siemens S7 series PLCs for data acquisition or control.
• Data Acquisition & Monitoring: Collects sensor data from PLCs via Ethernet for centralized processing in Rockwell systems.
• Remote Monitoring/Control: Supports industrial applications requiring remote device oversight via Ethernet.
• Industry Applications: Widely used in oil & gas, chemical, food & beverage, and other complex process control systems requiring multi-vendor PLC integration.

Installation and Maintenance

• Installation:

Power down the system.

Insert the module into an empty slot on the ControlLogix backplane.

Connect it to the Siemens PLC’s industrial Ethernet port using a standard cable (straight-through or crossover; auto-detection is supported).

Verify normal LED operation upon startup (e.g., displaying “Init”).

• Configuration & Maintenance:

Use ProSoft Configuration Builder (PCB) software to set the IP address, network parameters, and I/O mappings.

Monitor diagnostics in real-time via the module’s LED display or the CIPconnect tool for quick fault resolution.

For module replacement, simply transfer the CF card to the new unit to restore all configurations, streamlining maintenance.
