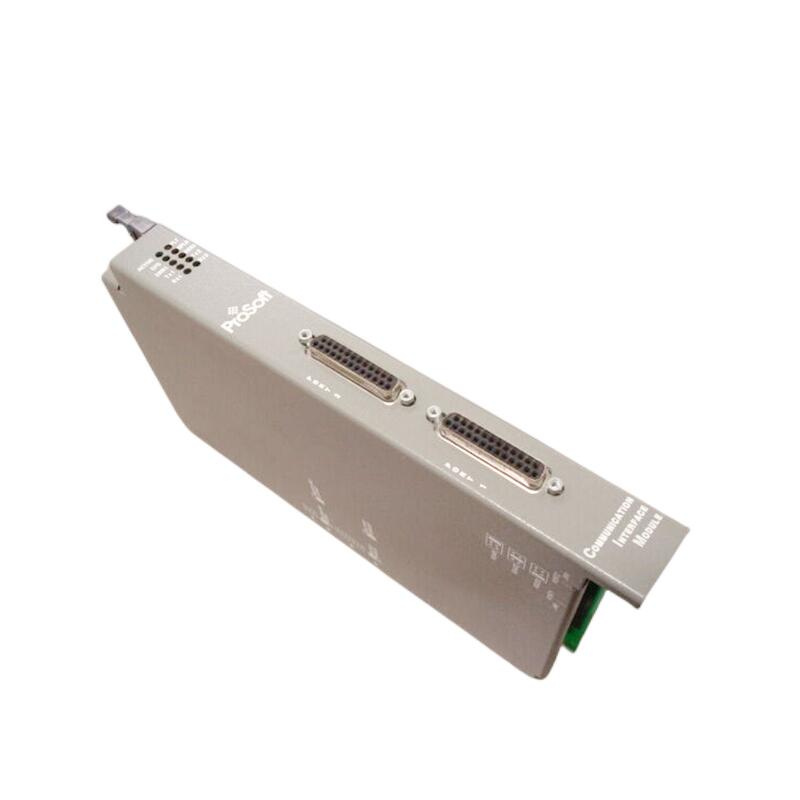

ProSoft MVI56-AFC

Overview

Core Specifications

• Model Number: MVI56-AFC / 1.03
• Input Voltage: 24V DC (industrial standard voltage)
• Power Consumption: Maximum 3.5W
• Operating Temperature Range: -40°C to +70°C (suitable for harsh industrial environments)
• Battery Backup: Built-in battery supports RAM data retention, ensuring data integrity after power failure
• Interface Type: Compatible with 1756 ControlLogix backplane, featuring single-slot design
• Communication Interfaces: Supports RS232/RS485/RS422 serial communication
• Storage Capacity: Supports up to 10,000 16-bit register mappings, with CF card slot for hot-swappable configuration backup

Key Features

1. High Reliability: Industrial-grade design ensures stable long-term operation, withstanding environmental challenges such as vibration and temperature fluctuations.
2. Battery-Backed Data Protection: The integrated battery safeguards critical configuration and metering data stored in RAM against power loss.
3. Flexible Programming Capabilities: Users can configure parameters and program logic via ProSoft Configuration Builder software, adapting to diverse flow measurement requirements.
4. Multi-Protocol Compatibility: Supports Modbus, DF1 and other industrial communication protocols, facilitating seamless integration with third-party sensors and devices.
5. Advanced Data Management: With 10,000 register mappings and flexible data storage, configuration backup via CF card simplifies on-site debugging and module replacement.

Structure and Components

• Main Control Unit: Embedded microprocessor and battery backup system, responsible for flow measurement calculations and data storage.
• Communication Ports: Provides RS232, RS485 and RS422 ports to support serial communication.
• Power Interface: 24V DC power supply with integrated battery backup circuit.
• Mounting Interface: 1756 backplane slot design, compatible with local or remote rack installation.
• Storage Medium: CF card slot enables hot-swappable backup of configuration files.

Application Areas

• Industrial Gas Metering: Ideal for gas flow measurement in petrochemical, natural gas processing and chemical production facilities.
• Process Control: Applied in manufacturing process automation, such as monitoring the opening degree of flow control valves.
• Energy Management: Monitors gas consumption and transmission volume at energy stations (e.g., gas supply stations).
• Laboratory Automation: Enables precise control and recording of gas flow in experimental processes.
