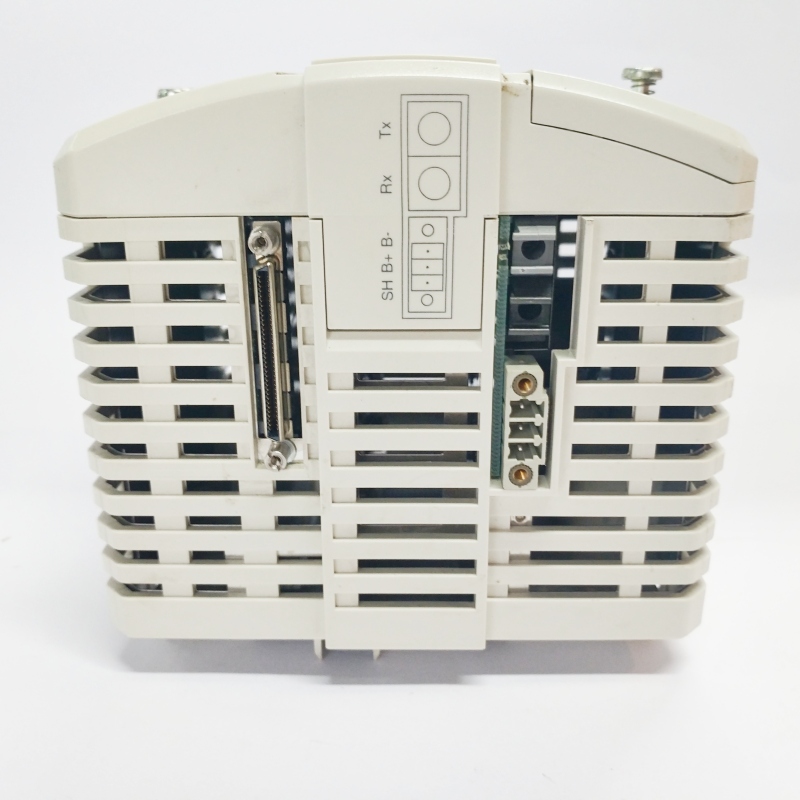

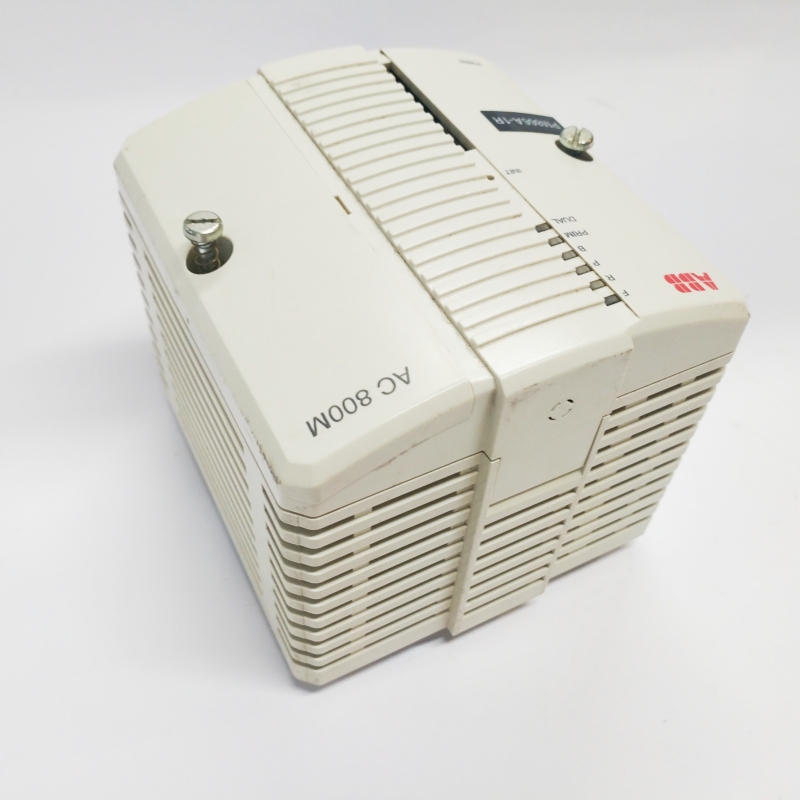

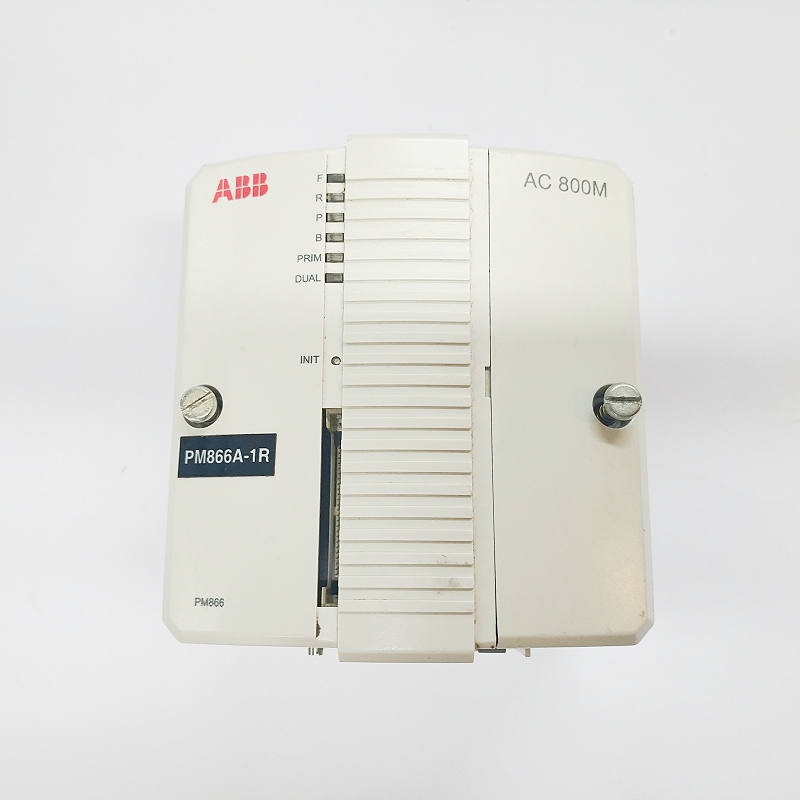

ABB PM866 3BSE050200R1

I. Overview

II. Parameters

• Model: PM866 3BSE050200R1
• Processor: Intel Atom D2701 or 32-bit RISC processor with a clock speed of 2.13 GHz
• Memory: Up to 2 GB DDR3 RAM and 8 GB Flash storage
• Expansion Slots: 8 PCIe Gen2 x1 expansion slots
• Communication Interfaces: Ethernet, RS-232, RS-485, Modbus TCP, PROFIBUS, PROFINET, etc.
• Operating Voltage: 24V DC or 220V
• Operating Temperature: 0°C to 55°C or -40°C to +70°C (depending on the version)
• Protection Level: IP20
• Dimensions: 75 x 130 x 120 mm
• Weight: 1.1 kg
• Power Current: 5A
• Digital I/O Points: 16 digital inputs, 16 digital outputs
• Analog I/O Points: 16 analog inputs, 16 analog outputs

III. Product Features

• High-performance Processing: Equipped with a high-performance processor to quickly execute complex control algorithms and data processing tasks, ensuring real-time system response.
• Modular Design: Supports multiple I/O modules and communication interfaces for flexible expansion and customization of control systems.
• Redundancy and Reliability: Provides redundant configuration and hot backup functions to ensure system operation during failures.
• Multiple Communication Protocols: Supports Ethernet, Modbus, PROFIBUS, PROFINET, and other protocols for easy integration with other devices and systems.
• Safety and Reliability: Adopts high-quality components and advanced manufacturing processes to ensure stable operation in harsh industrial environments.
• Programming Flexibility: Supports multiple programming languages, including IEC 61131-3 standards (Ladder Diagram, Function Block Diagram, Structured Text) and ABB’s proprietary Control Builder M environment.
• Easy Installation and Maintenance: Modular design facilitates installation, maintenance, and replacement, reducing downtime.

IV. Structure and Composition

• Central Processing Unit (CPU): Responsible for executing control programs and managing data.
• Memory Module: Provides large-capacity RAM and Flash storage for program and data storage.
• Expansion Slots: 8 PCIe Gen2 x1 slots supporting various I/O modules and communication interfaces.
• Communication Interfaces: Including Ethernet, RS-232, RS-485, Modbus TCP, PROFIBUS, PROFINET, etc., for communication with other devices.
• Power Module: Supplies 24V DC or 220V power to ensure stable operation.
• Cooling Design: Adopts efficient heat dissipation to maintain performance under high loads.

V. Application Fields

• Manufacturing: For production line automation, robot control, quality inspection, etc.
• Energy Sector: For power plants, substations, water treatment, and power system automation.
• Utilities: For building automation, traffic control, environmental monitoring, etc.
• Discrete Industries: Such as automotive manufacturing, food & beverage, packaging, etc.
• Process Industries: Such as petrochemical, metallurgy, papermaking, etc.
• Construction and Infrastructure: For building automation, smart grids, infrastructure monitoring, etc.

VI. Installation and Maintenance

Installation:

• The module uses a standard DIN rail mounting method for easy installation in control cabinets.
• Ensure power voltage, current, and temperature meet requirements before installation.
• Configure and install I/O modules in expansion slots according to actual needs.

Maintenance:

• Regularly check the module’s operating status to ensure normal function.
• Clean the module surface to prevent dust and debris from affecting heat dissipation.
• Inspect communication interfaces and connection cables for stable signal transmission.
• Update firmware and software to ensure optimal performance and security.
• For faults, refer to the product manual for basic troubleshooting or contact ABB technical support.
