Operating Voltage:DC 5V ±10%

Resolution:3600 PULSES/REV

Shaft Diameter:φ3.5mm

Output Type:Digital

Accuracy:+/- 1% of full scale

Temperature Range:-20°C to +80°C

Shaft Rotation Speed:≤ 1000 rpm

Operating Current:≤ 2.0 mA

Diameter:65mm

Height:45mm

Material:Aluminum

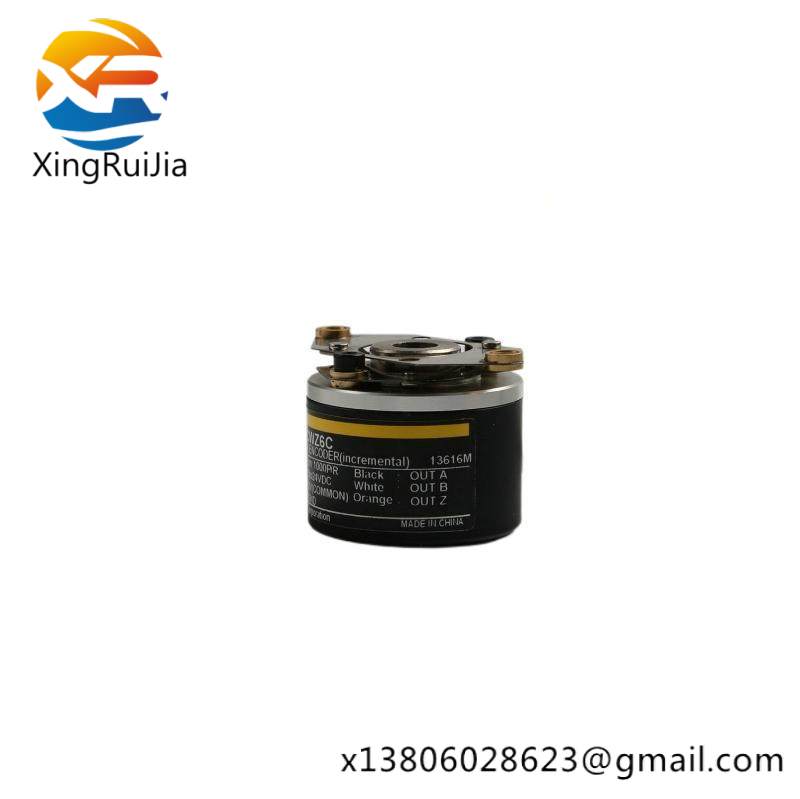

    Engineered for durability and precision, the Omron E6H-CWZ3X is a reliable choice for demanding industrial environments. Its hollow shaft design facilitates easy integration with a wide range of mechanical systems without compromising on performance.

    This encoder utilizes advanced technology to provide a high-resolution output of 3600 pulses per revolution, ensuring accurate position detection and control in critical automation processes. Its digital output simplifies connection and reduces the risk of interference compared to analog alternatives.

    Featuring a compact yet sturdy aluminum housing, the E6H-CWZ3X is designed to withstand harsh conditions typically encountered in manufacturing plants. With a temperature range from -20°C to +80°C, it ensures consistent operation across varying environmental conditions.

    The encoder’s low current consumption of ≤ 2.0 mA makes it an energy-efficient solution, suitable for power-sensitive systems. Additionally, its maximum shaft rotation speed of 1000 rpm allows for fast and smooth motion control in high-speed applications.

    For ease of installation and maintenance, the Omron E6H-CWZ3X is equipped with a user-friendly interface and standard mounting options. It is compatible with a variety of control systems and software, enhancing its flexibility in different industrial setups.
