Operating Voltage:24 VDC

Max Current per Axis:2.5 A

Axis Count:2

Communication Interface:CANopen

Max Resolution:1 μm

Operating Temperature Range:-20°C to +60°C

Enclosure Type:IP20

Dimensions (WxHxD):100 x 35 x 100 mm

Weight:0.5 kg

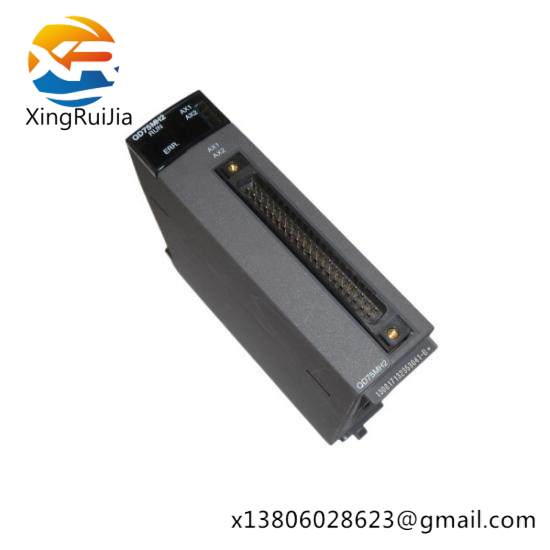

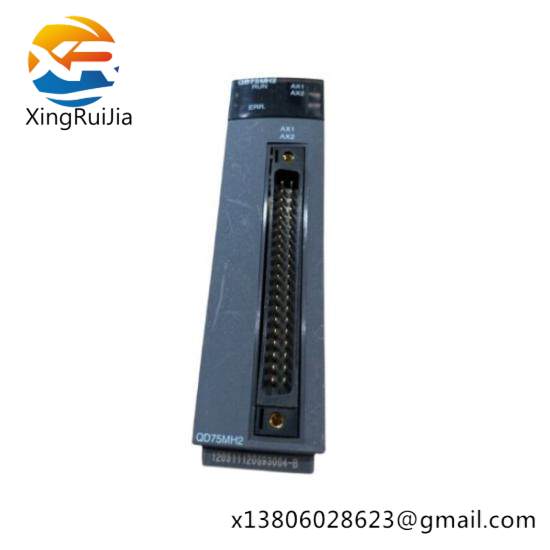

    The Mitsubishi QD75MH2 Positioning Unit is a cornerstone of precision motion control in the modern manufacturing environment. Its compact design allows for efficient integration into existing machinery, optimizing space without compromising performance.

    Featuring a high-resolution encoder with ±0.001mm positioning accuracy, this unit ensures unparalleled precision in critical applications such as semiconductor manufacturing, precision assembly lines, and medical equipment production.

    With a maximum speed of 5000mm/s, the QD75MH2 is capable of delivering rapid movement with minimal acceleration or deceleration time, significantly increasing throughput rates compared to conventional systems.

    Built with robust materials and designed to withstand harsh industrial conditions, the unit operates within a wide temperature range from -10°C to +55°C, ensuring reliability across diverse environments.

    Equipped with a state-of-the-art communication interface, the Mitsubishi QD75MH2 seamlessly connects to a variety of control systems, facilitating easy setup and integration with other Mitsubishi Electric products. This enhances system compatibility and streamlines automation workflows.
