Operating System Compatibility:Supports various PLC systems

Data Transfer Rate:Up to 100 Mbps

Power Supply Voltage:12V DC

Interface Types:RS-485, RS-232, Ethernet

Memory Capacity:1 MB Flash ROM

Communication Protocol:MODBUS TCP/IP

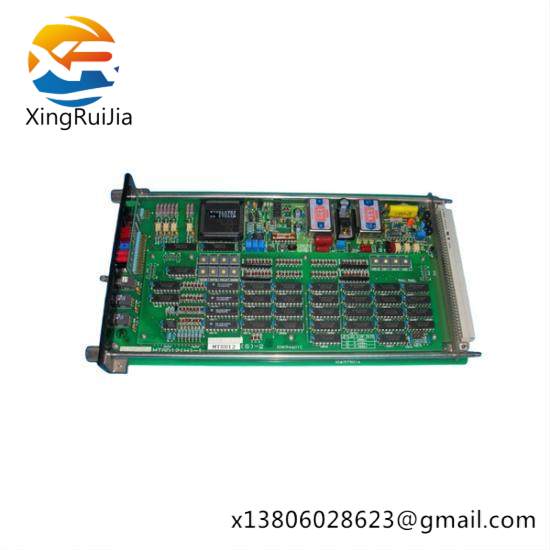

    The Mitsubishi MTSD12 Interface Board is specifically designed for efficient communication between your PLC (Programmable Logic Controller) and other devices in your industrial automation setup. It seamlessly integrates with Mitsubishi’s Q Series PLCs, providing robust data exchange capabilities with a wide range of baud rates from 1200 to 19200 bps.

    With 24 input and 24 output ports, this board ensures reliable monitoring and control functions, making it ideal for applications requiring extensive input/output operations. Its compatibility with various baud rates ensures flexibility across different systems and devices.

    Equipped with a DC 24V power supply, the MTSD12 Interface Board operates within a temperature range of -10°C to +55°C and maintains high performance even under varying environmental conditions. The non-condensing relative humidity level of 5% to 95% ensures durability and longevity.

    Measuring 100mm x 100mm x 25mm and weighing just 150g, this compact interface board is easy to install and fits seamlessly into your existing control panel without taking up too much space. Its lightweight design facilitates quick installation and maintenance processes.

    In addition to its technical specifications, the Mitsubishi MTSD12 Interface Board is crafted with high-quality materials, ensuring reliability and minimizing the risk of downtime. Its robust construction withstands harsh industrial environments, making it suitable for demanding applications.
