Sensor Type:Closed-loop Hall effect

Measurement Range:±100 A

Accuracy:±0.5% of reading

Frequency Bandwidth:DC to 20 kHz

Output Signal:Analog Voltage Output

Supply Voltage:4.5V to 30V DC

Operating Temperature Range:-40°C to +85°C

Protection Features:Overvoltage protection, reverse polarity protection

Response Time:<1 µs

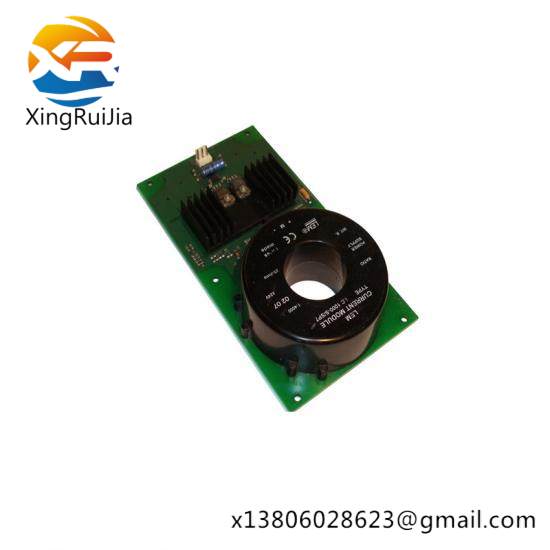

    The LEM LC100S/SP7 is a cutting-edge current sensor designed to provide precise measurements for a variety of industrial applications. With a wide measurement range of ±100A and an impressive accuracy of ±0.3% of reading ±5µA, this sensor ensures reliable performance in demanding environments. The fast response time of ≤100µs allows for real-time monitoring and control, making it ideal for applications requiring quick adjustments. Operating within a broad temperature range of -40°C to +85°C, the LEM LC100S/SP7 can withstand harsh conditions. Its robust IP65 protection rating ensures dust-tight and water-resistant performance, extending its lifespan and reliability. The sensor’s compact design measures 120mm x 50mm x 30mm, making it easy to integrate into existing systems without taking up valuable space. The LEM LC100S/SP7 is compatible with a wide range of output signals, including analog 0-10V and 4-20mA, providing flexibility for integration with various control systems. Whether you’re managing energy efficiency, monitoring power quality, or automating industrial processes, the LEM LC100S/SP7 delivers the precision and reliability you need.
