Model Type:TMR, AI

Model Number:Triconex 3700/3700A

Voltage:0-5V, + 6%

No. of Input Points:32, diff, DC coupled

Isolated Points:No

Input Update Rate:55 ms

Resolution:12 bits

Accuracy:< .15% of FSR, from 0° to 60°C

Input Resistance (load):30 MΩ (DC), min.

Power-Off Resistance:30 KΩ (DC), typical

Common Mode Rejection:-80 dB (DC-100Hz), typical

Common Mode Range:-12V to +12V peak

Leg-to-Leg Isolation:200 KΩ, typical

Normal Mode Rejection @ 8Hz:-3 dB @ 60Hz -17 dB @ 120Hz -23

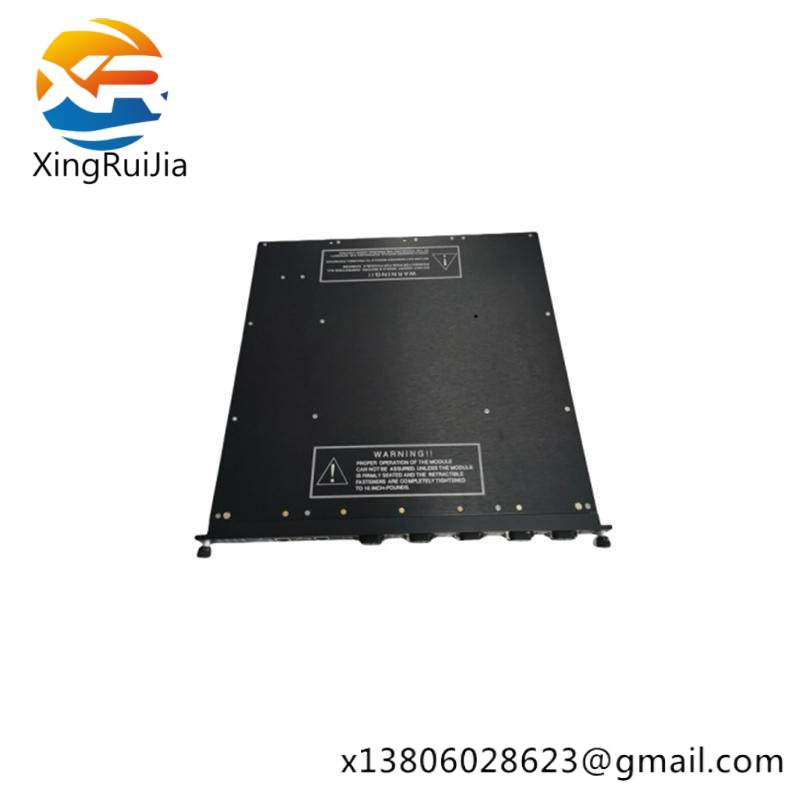

    The Invensys Triconex 3700A Analog Input Module is engineered for precision and reliability, ensuring accurate data acquisition in even the most challenging industrial settings.

    With a wide range of 0-5V input and a resolution of 12 bits, this module provides unparalleled accuracy, crucial for critical applications where data integrity is paramount.

    Featuring a high update rate of 55 milliseconds, the 3700A can capture rapid changes in process conditions without delay, making it ideal for real-time monitoring and control systems.

    The module’s robust isolation capabilities protect against electrical interference, ensuring continuous operation even in harsh environments.

    Designed for durability and efficiency, the Invensys Triconex 3700A is built to withstand the rigors of industrial use, backed by the brand’s commitment to quality and safety.

    For detailed specifications or further information, please contact our sales team. Experience the reliability and precision of the Invensys Triconex 3700A Analog Input Module today, enhancing your industrial automation capabilities.
