Operating Voltage:180V

Current Rating:16A

Reverse Voltage:200V

Temperature Range:-40°C to +150°C

Insulation Resistance:> 10^12 ohms @ 500V DC

Leakage Current:< 5 μA

Package:TO-247

Mounting Style:Surface Mount

Operating Frequency:Up to 10 kHz

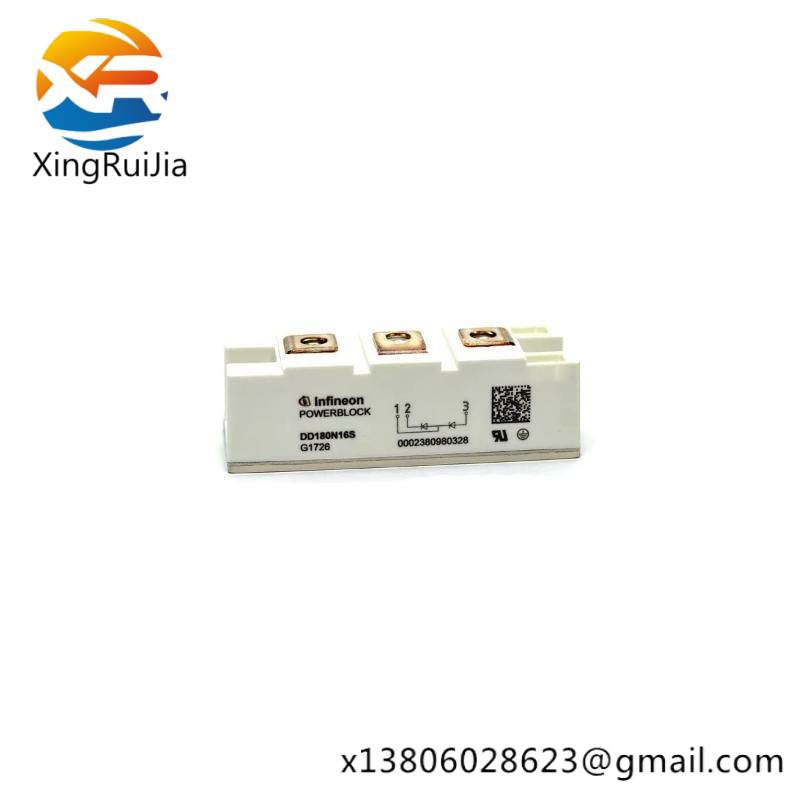

    The Infineon DD180N16S Diode Module is specifically engineered for industrial control systems requiring exceptional performance and durability under extreme conditions. Its high-grade aluminum housing ensures longevity and thermal stability, making it ideal for use in a wide range of industrial applications.

    Featuring a peak inverse voltage rating of 1600V, this module can handle high-voltage scenarios with ease, ensuring safety and reliability in power management tasks. The current rating of 180A allows for efficient power transfer, suitable for applications requiring substantial electrical throughput.

    Designed for operation within a temperature range of -40°C to +175°C, the DD180N16S is capable of functioning in environments with both extreme cold and heat, ensuring consistent performance regardless of ambient conditions.

    With an insulation resistance of ≥10MΩ, the module ensures excellent electrical isolation, which is crucial for preventing short circuits and maintaining system integrity. This feature is particularly important in safety-critical industrial systems where electrical reliability is paramount.

    Equipped with a TO-247 package type, the Infineon DD180N16S Diode Module offers superior heat dissipation and compact size, making it easy to integrate into existing industrial control systems without compromising on space or cooling requirements. Moreover, it is certified to meet international standards including CE, UL, and IEC, ensuring compliance with global safety and quality regulations.
