Motor Type:Low-Torque Rotary Actuator

Model Number:M9484F1031

Brand:Honeywell

Designation:Modutrol IV

Supply Voltage:24 Vac

Frequency:50 Hz; 60 Hz

Power Consumption:15 W

Input Signal:135 ohm

Dimensions (Height x Width x Depth):164 mm x 140 mm x 185 mm

Weight:7.5 lb

Operating Timings:Available in 10 seconds (160° stroke) or 60 seconds (160° stroke)

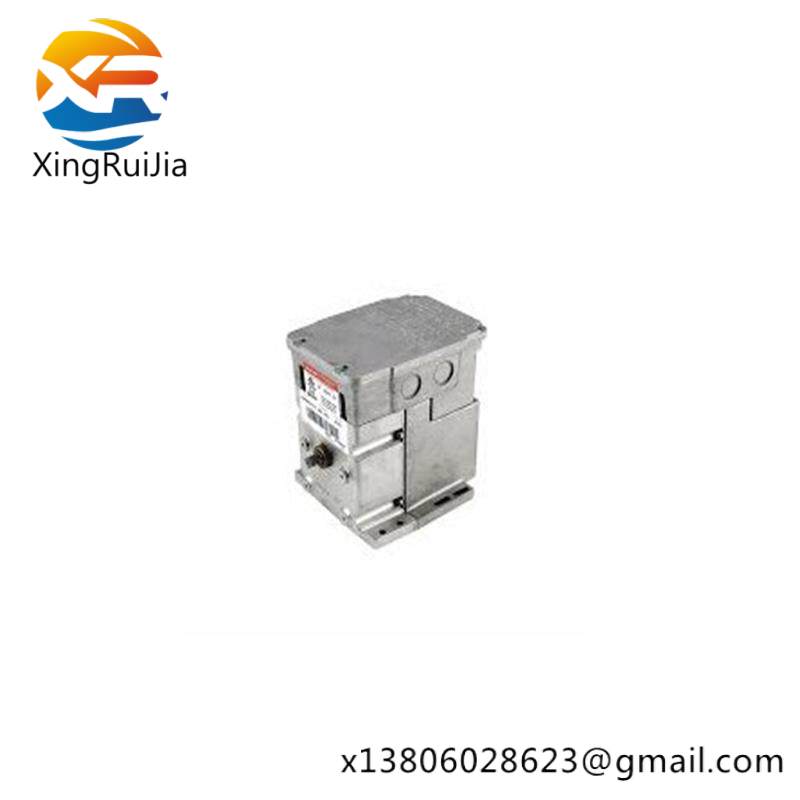

    The Honeywell M9484F1031 Modutrol IV motor is engineered for precision control in a variety of industrial settings. Its robust design ensures reliability and longevity even in the most demanding environments.

    Featuring a versatile low-torque rotary actuation capability, this motor is ideally suited for applications requiring fine control, such as valve actuation, robotics, and automation systems.

    With its non-spring return and integral spring return options, the M9484F1031 allows for flexible positioning and return-to-center functionality, providing operators with the control they need.

    Built with a 24 Vac supply, this motor operates efficiently across various industrial frequencies, ensuring compatibility with a wide range of systems and equipment.

    The M9484F1031 comes equipped with an auxiliary switch cam for safety monitoring, enhancing operational safety and system integrity. Its weather-resistant NEMA 3 housing protects against environmental elements, making it suitable for outdoor installations or harsh indoor conditions.

    With a temperature range of -20°C to +60°C, this motor is designed to withstand varied operational climates, ensuring consistent performance throughout its lifespan.
