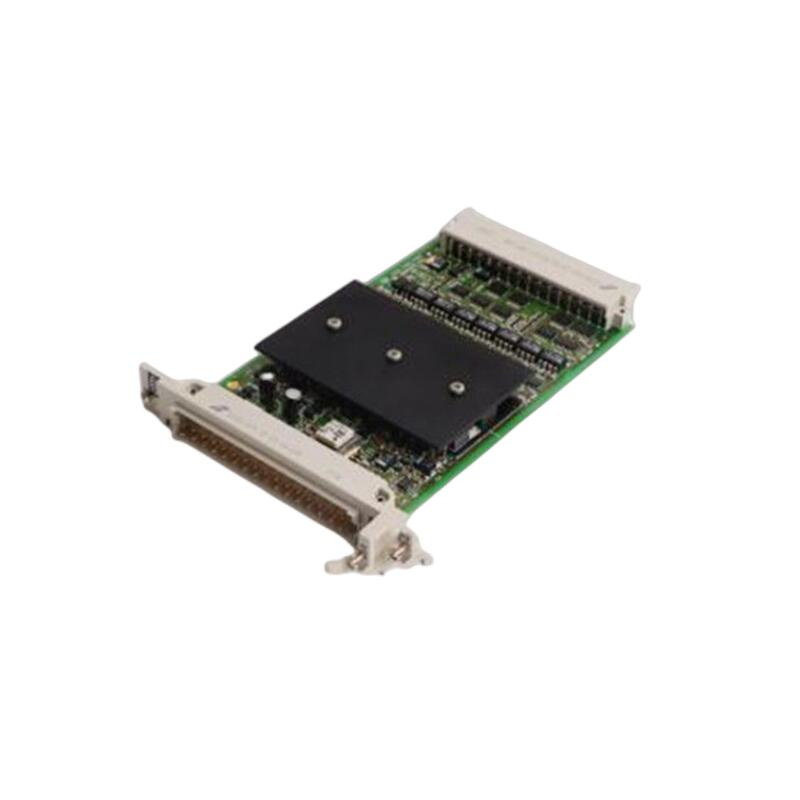

HIMA F60 MI 24
1. Overview
HIMA F60 MI 24 01 is a key module in the F60 series modular safety system developed by HIMA. It is mainly applied in industrial automation control systems, responsible for the collection and processing of safety signals. Specifically designed for critical process control systems, this module is widely used in power plants, steel mills, petrochemical and other industries. Its core function is to quickly cut off hazard sources in case of faults or dangerous situations, thereby protecting the safety of personnel and equipment.
2. Specifications
|
Parameter
|
Specification/Description
|
|---|---|
|
Operating Voltage
|
24 VDC (standard industrial safety voltage)
|
|
Input Channels
|
16-channel digital input (dry contact or active signal)
|
|
Output Channels
|
8 relay outputs (16VDC, 0.2A)
|
|
Protection Level
|
IP20 (suitable for internal cabinet installation)
|
|
Operating Temperature Range
|
-25℃ to +70℃ (some data shows -20℃ to +70℃)
|
|
Dimensions
|
Modular design, compatible with DIN rail mounting
|
|
Safety Level
|
Supports SIL 3 Safety Integrity Level (compliant with IEC 61508/61511 standards)
|
3. Product Features
- High Reliability: Complies with SIL3 safety standards, supports redundant design and self-diagnostic functions. It can real-time monitor channel status and record faults.
- Flexible Configuration: Communicates with the main controller through the HIMatrix F60 backplane, supports hot-swapping operation, facilitating on-site replacement and maintenance.
- Modular Design: Compact structure, easy to combine with other F60 series modules (such as CPU, input/output modules) with strong expandability.
- Strong Adaptability: Supports dry contact and active signal input, suitable for different types of sensors and on-site equipment.
4. Structure and Composition
- Digital Input Terminal Block: 16 input signal interfaces, supporting high-voltage electrical isolation to ensure the accuracy and safety of signal collection.
- Relay Output Terminal Block: 8 output interfaces, mainly used to control the on-off status of on-site equipment (such as valves, relays).
- Communication Interface: Performs high-speed data communication with the main control CPU through a dedicated backplane to ensure real-time transmission of control commands.
- Power Supply and Heat Dissipation Module: Includes internal power distribution circuit and heat dissipation design to ensure stable operation of the module in high-temperature environments.
5. Application Fields
- Energy and Power: Critical process control and safety monitoring of thermal power plants, hydropower plants, and nuclear power plants.
- Steel and Metallurgy: Safety interlocking of high-risk equipment such as blast furnaces, converters, and continuous casting machines.
- Petrochemical: Explosion-proof and leakage control of oil refining and chemical equipment.
- Transportation and Shipping: Safety monitoring of motor drives and ship engines.
6. Installation and Maintenance
Installation
Adopts standard DIN rail mounting method. Before installation, ensure the power supply voltage is stable, and use a protective cover that meets specifications to cover unused slots.
Wiring
Input signal lines must strictly distinguish between Normally Open (NO) and Normally Closed (NC) states, and output signal lines must match the electrical characteristics of on-site equipment.
Maintenance
Supports hot-swapping function, which means the module can be replaced while powered on, reducing system downtime. Regularly check the self-diagnostic log to ensure the input channels are error-free.
Note: For more detailed technical parameters and operation guidelines, please refer to the official HIMA F60 series product manual.
————————————————————————————————-
