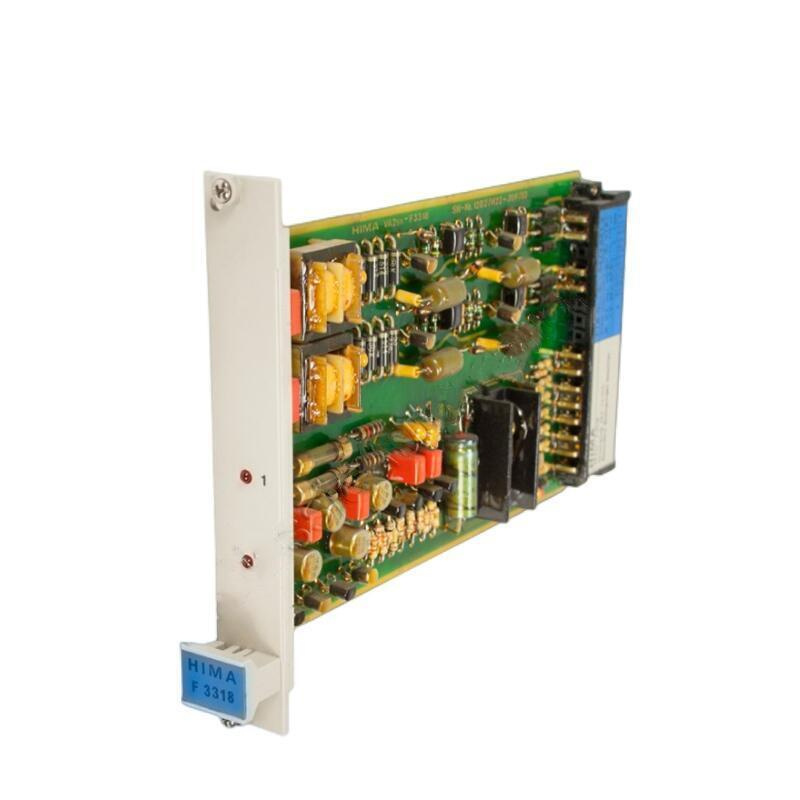

Product Overview

Technical Parameters

• Certification & Safety Level: Complies with IEC 61508 / IEC 62061 standards, typically capable of SIL 3 or SIL 4 certification (specific level depends on system configuration).
• Processing Capacity: Adopts a high-performance processor, supporting complex safety logic operations and high-speed data processing.
• Communication Interfaces: Fieldbus interfaces such as PROFIBUS, PROFINET, Ethernet/IP, etc.
• I/O Interfaces: Supports the connection of various digital and analog input/output modules.
• Diagnostic Functions: Equipped with Online Diagnostics and fault recording functions.

____________________________________________________________________________________________________

Product Features

• High Reliability: Adopts dual CPU redundancy design, with dual Channel or Dual System redundancy capability.
• Safety: Built-in Fault Safe mechanism, which can achieve safe shutdown when hardware faults or software abnormalities are detected.
• Compatibility: Can be seamlessly integrated with other HIMA modules (such as 8628X, F8621A, etc.) to form a complete Safety Instrumented System.
• Easy Integration: Supports standardized SIS programming software, facilitating configuration and verification.

____________________________________________________________________________________________________

Structure & Components

• CPU Processing Unit: Responsible for executing safety logic and fault detection algorithms.
• Redundancy Module: Contains two CPUs with the same function internally, comparing operating status in real time.
• Communication Interface Board: Responsible for data exchange with upper computers and field devices (I/O modules).
• Power Supply Module: Ensures that the system can still maintain safety functions when there is power fluctuation or failure.

____________________________________________________________________________________________________

Application Fields

• Petrochemical Industry: Safety control of key reactors and distillation towers.
• Natural Gas & Oil Refining: Safety monitoring of pipeline leaks and fracturing operations.
• Power Industry: Protection of generator sets and substations.
• Manufacturing Industry: Robot safety systems and emergency shutdown control of automated production lines.

____________________________________________________________________________________________________

Installation & Maintenance

• Installation: Usually installed on DIN rails, or installed together with I/O modules as part of a modular system.
• Maintenance: Equipped with Self-test and online diagnostic functions, supporting remote monitoring and maintenance.
• Fault Handling: When a fault is detected, it will automatically switch to Safety Mode and record fault information for troubleshooting.
