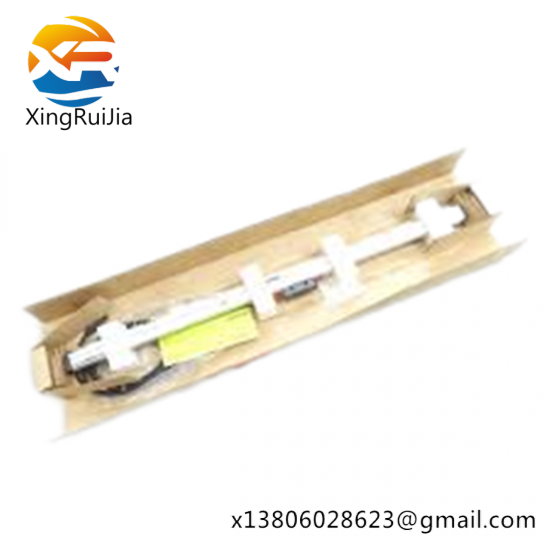

Brand:HEIDENHAIN

Model:ROD700-18000

Type:Linear Encoder

Measuring Length:18000 mm

Accuracy Class:±1 µm

Resolution:0.01 µm

Signal Type:Incremental

Output Signal:Sin/Cos

Voltage Rating:5 VDC

Operating Temperature Range:-30°C to +85°C

Protection Rating:IP67

Weight:1.5 kg

Certification:CE, RoHS compliant

    The HEIDENHAIN ROD700-18000 is an advanced encoder system designed for precise position feedback in industrial automation. With a measuring range of up to 18000 counts, this encoder provides exceptional resolution and accuracy, ensuring reliable performance even under harsh conditions. Its compact design and robust construction make it suitable for a wide range of applications including machine tools, robotic arms, and process control systems.

    Key features include:

    – High precision measurement with ±0.4 arcsecond accuracy.

    – Compatibility with multiple communication interfaces (SSI, BiSS, EnDat 2.2) for seamless integration with existing systems.

    – Robust design capable of operating in extreme temperatures (-40°C to +85°C) and high protection ratings (IP65).

    – Versatile shaft diameter options for easy installation.

    Whether you’re upgrading your current machinery or building a new system, the HEIDENHAIN ROD700-18000 offers unparalleled accuracy and reliability, ensuring your operations run smoothly and efficiently.
